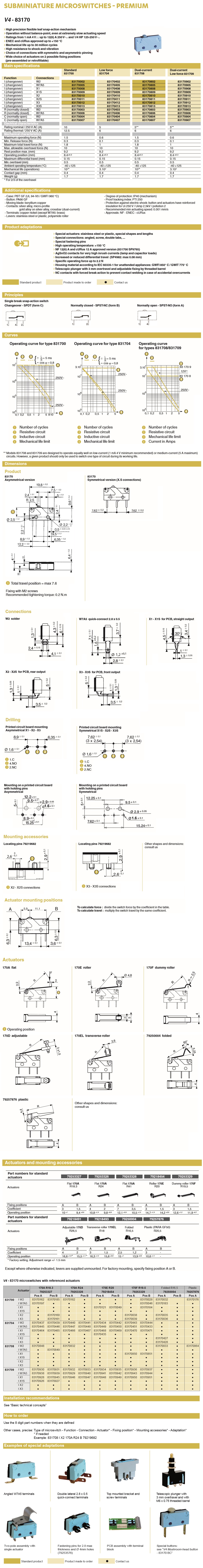

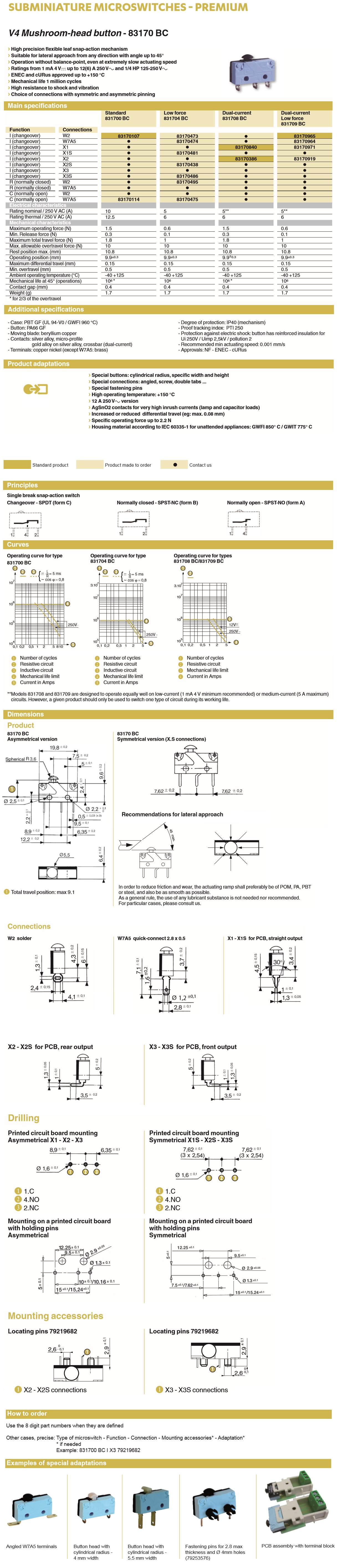

Description Specifications and Drawings


Crouzet: Subminiature Microswitches (V4 - 83170 Series)

With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.

Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

Subminiature Microswitches – Premium

  • High precision flexible leaf snap-action mechanism

  • Operation without balance-point, even at extremely slow actuating speed

  • ENEC and cURus approved up to +150 °C

  • Mechanical life up to 30 million cycles

  • High resistance to shock and vibration

  • Choice of connections with symmetric and asymmetric pinning

  • Wide choice of actuators on 2 possible fixing positions (pre-assembled or retrofittable)

Specifications

  • Approx body size (mm): 20x10x6

  • Rating (max): 12A/250Vac

  • Degree of protection: IP40

  • Operating temperature: -40°C/+150°C

  • Operating force (max): 0.6 –> 2.2N

  • Differential travel (max): 0.08 mm; 0,15 mm

  • Overtravel (min): 0.5 mm

  • Mechanical life (cycles): 30 M
