SIKO: Absolute Rotary Encoder (WV36M/CAN Series)

SIKO: Absolute Rotary Encoder (WV36M/CAN Series)

Call for Pricing

Price Quote Form

Order #: WV36M-CAN

.

Description

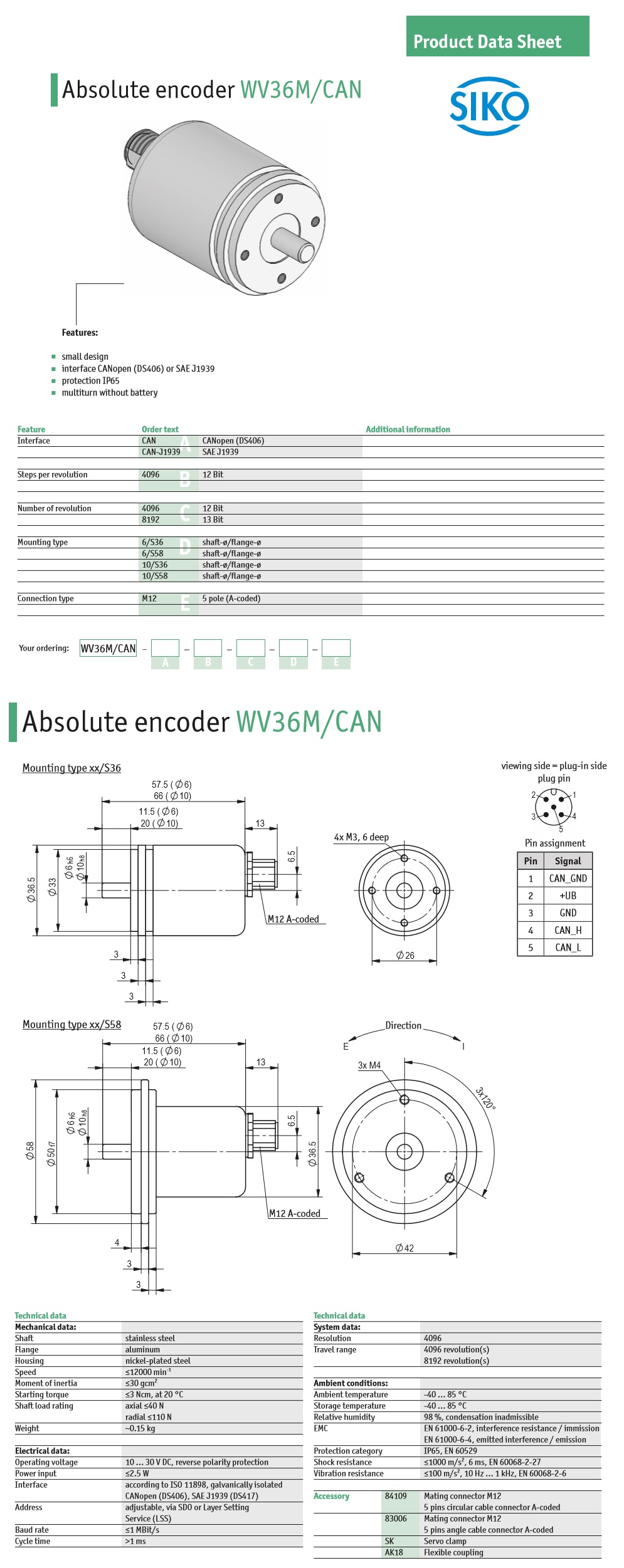

Specifications and Drawings

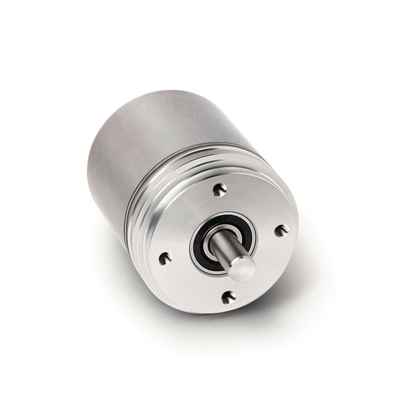

SIKO: Absolute Encoder (WV36M/CAN Series)

Metal housing with solid shaft

Magnetic, absolute multi-turn rotary encoder WV36M/CAN -batteryless, with CANopen interface. Owing to its double ball bearing, small design and wear-free measurement method, the WV36M/CAN is also best suited for positioning jobs in mechanically demanding environments.

Profile WV36M/CAN:

Compact design (36.5mm diameter)
CANopen (DS406) interface
Multi-turn without battery
Double ball bearings
12 bit multi-turn (4096 revolutions)
12 bit single-turn (4096 steps)
