SIKO: Absolute Rotary Encoder (WV58MR Series)
SIKO: Absolute Rotary Encoder (WV58MR Series)

Alternate View
833-9MOTION inquiry@e-motionsupply.com.
Price : $812.00

Price with Selected Options: $812.00


Availability: Lead time is 9-11 weeks
Order #: WV58MR


Options:

Qty:

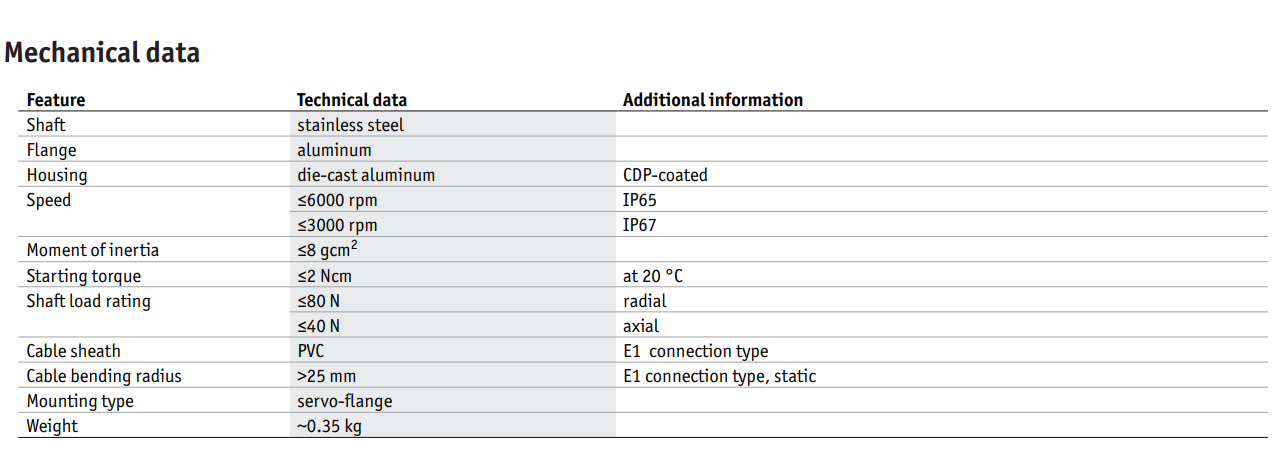

Description Ordering Information Specifications and Drawings


SIKO: Absolute Encoder (WV58MR Series)

Absolute redundant rotary encoder

The WV58MR rotary encoder is a magnetic rotary encoder with redundant sensorics, custom-designed for use in mobile machines. It can be employed in safety-critical applications up to Performance Level PLd. Thanks to its particularly robust design and special variants of housings it is ideally suited for heavy-duty use in mobile machines.

Profile WV58MR:

  • Absolute redundant rotary encoder

  • Particularly sturdy design

  • Operating voltage 8 ... 36 VDC

  • Also available in a salt-spray resistant housing

  • High electro-magnetic compatibility

  • Available with special swing ring functionality
