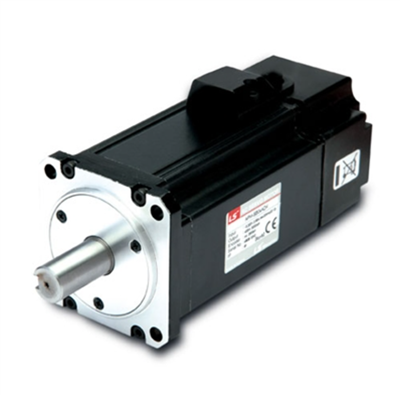

LSIS: Solid Shaft Servo Motor (XML-SB02A)

Home > AC Servo System >

LSIS: Solid Shaft Servo Motor (XML-SB02A)

LSIS: Solid Shaft Servo Motor (XML-SB02A)

Price : $629.00

Quantity in Stock:

Order #: XML-SB02ADK2E

Qty:

Description

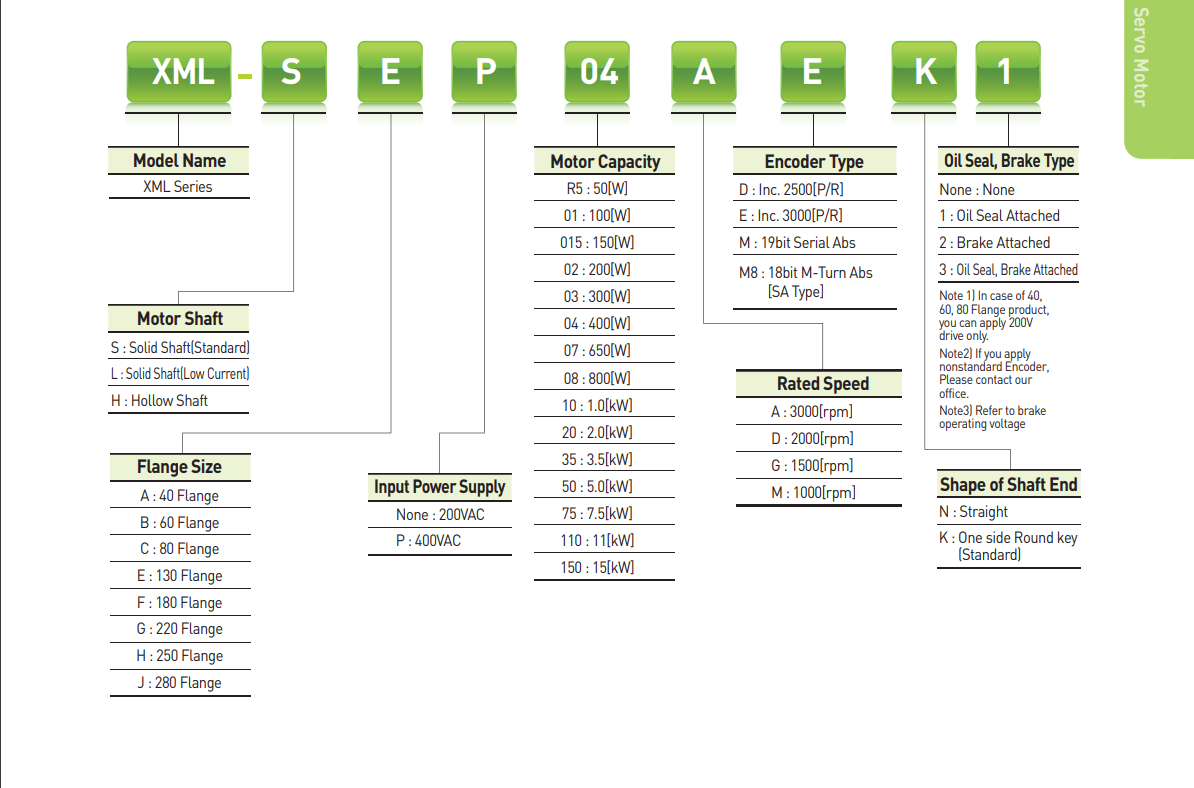

Ordering Information

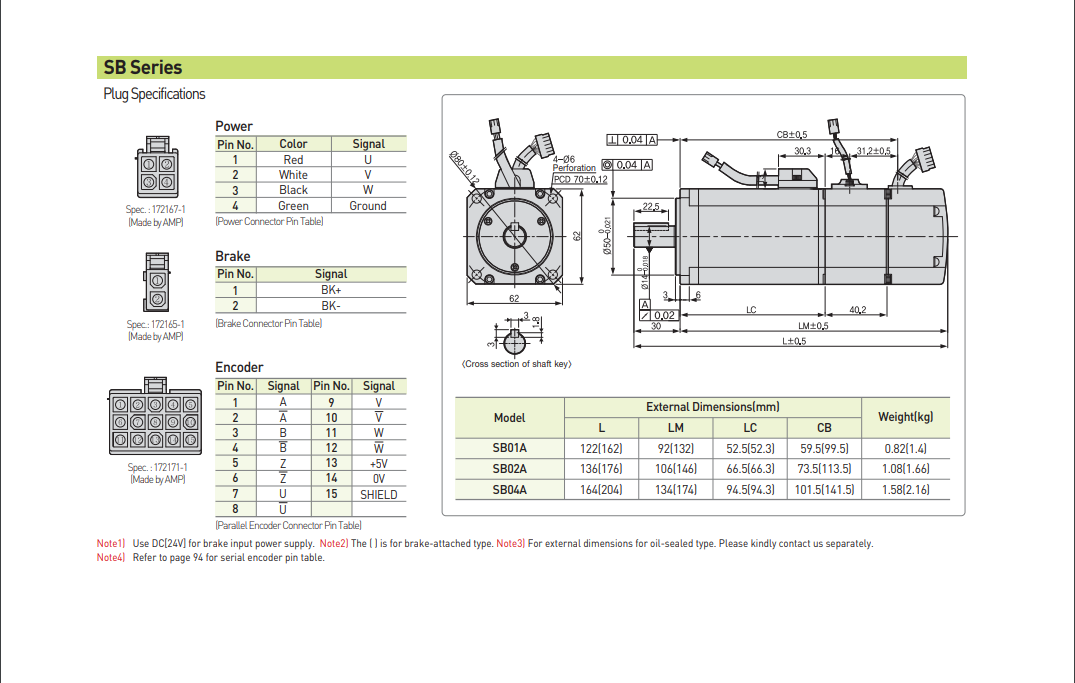

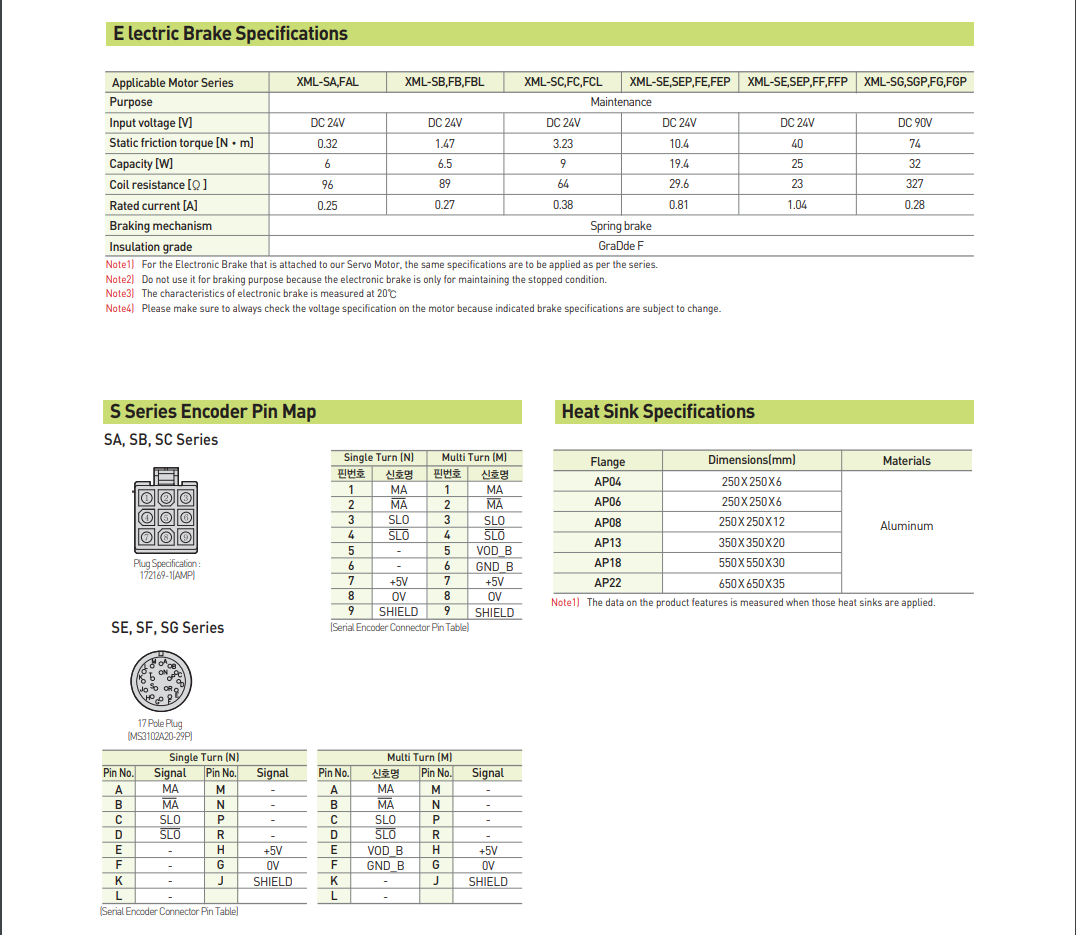

Specifications and Drawings

LS Mecapion: Solid Shaft Servo Motor (XML-SB02A)

Made in Korea

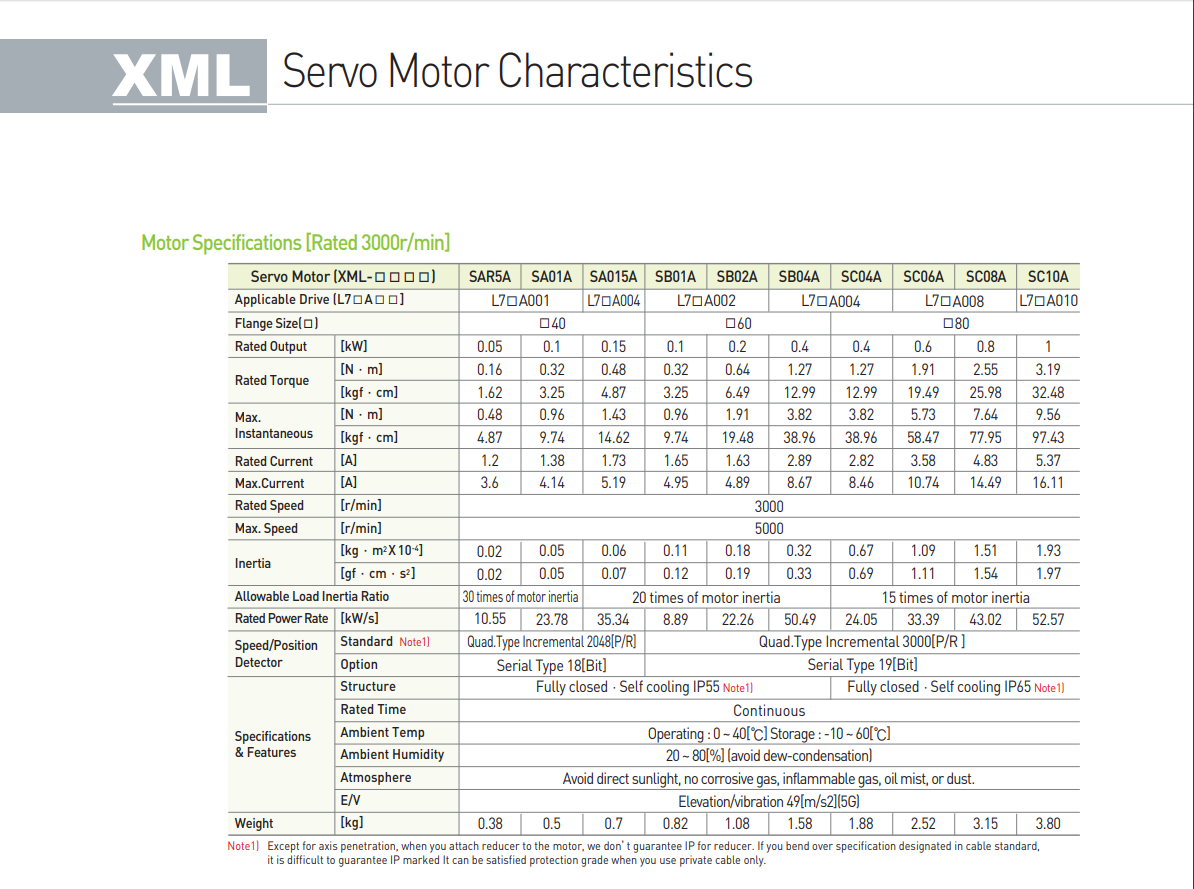

Specifications:

Flange Size: 60
Rated power: 0.2kW
Rated/Max torque: 0.637/1.912[N.m]
Rated/Max rpm: 3000/5000[rpm]
Speed, Position transducer: 2500[P/R]
Weight: 1.08 kg
