CYCLONE NEMA 11 Stepper Motor : ZSM-11-3

CYCLONE NEMA 11 Stepper Motor : ZSM-11-3

Alternate View

Price : $35.99

Availability: Usually Ships in 2 to 4 Weeks
Order #: ZSM-11-3

Shaft:

Qty:

Description

Ordering Information

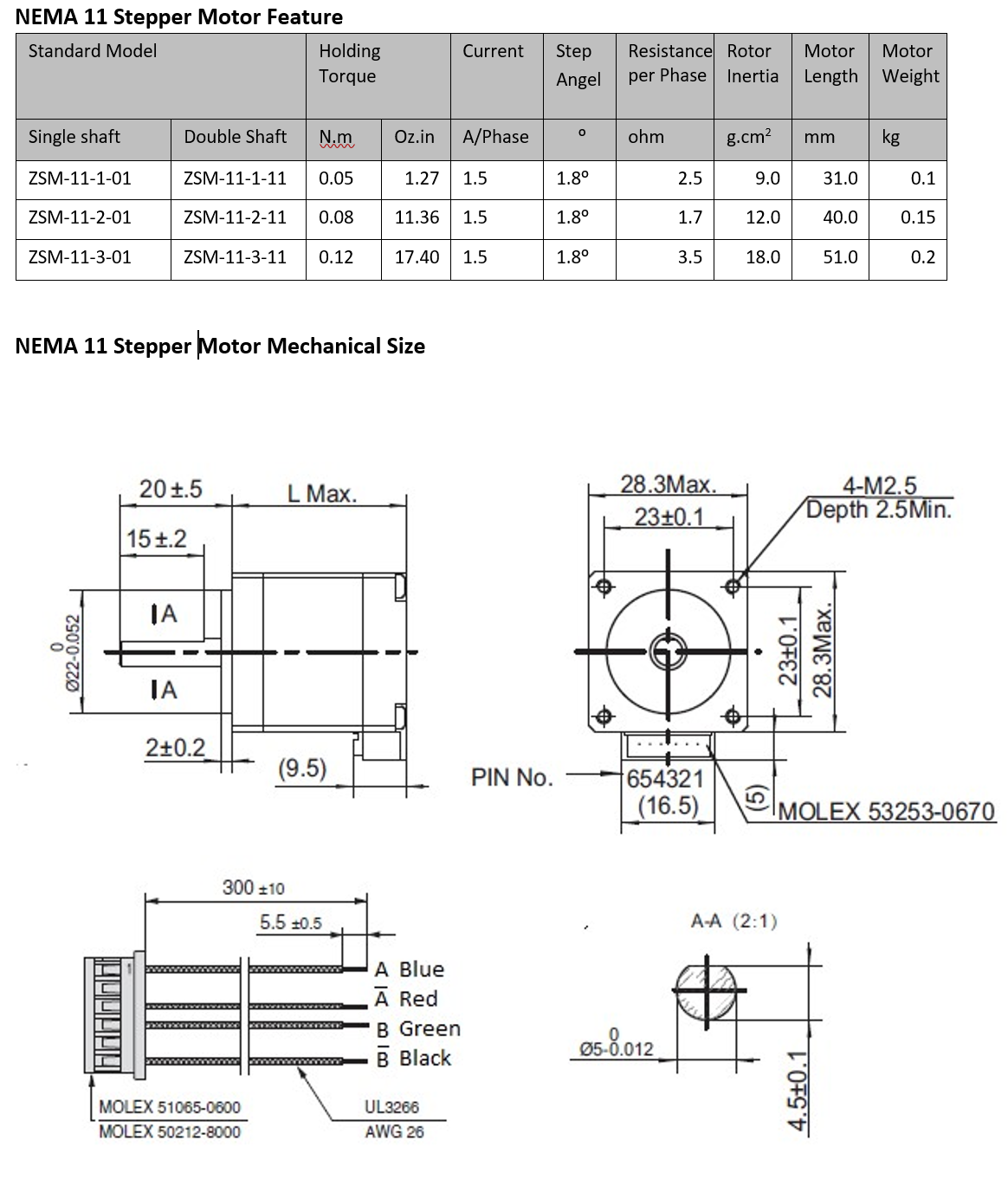

Specifications and Drawings

CYCLONE NEMA 11 Stepper Motor

Holding Torque (N.m/ oz-in): 0.12/ 17.40

Rated Current (A/Phase): 1.5

Step Angle (⁰): 1.8

Resistance/phase (Ω): 3.5

Rotor Inertia (g.cm2): 18.0

Motor Length (mm): 51.0

Weight (kg): 0.2

Support Links
CYCLONE 2 phase stepping motor brochure
