CYCLONE NEMA 23 Stepper Motor : ZSM-23H-2

Alternate View

Price : $316.00

Availability: Usually Ships in 3 to 5 Days
Order #: ZSM-23H-2

Shaft:

Qty:

Description

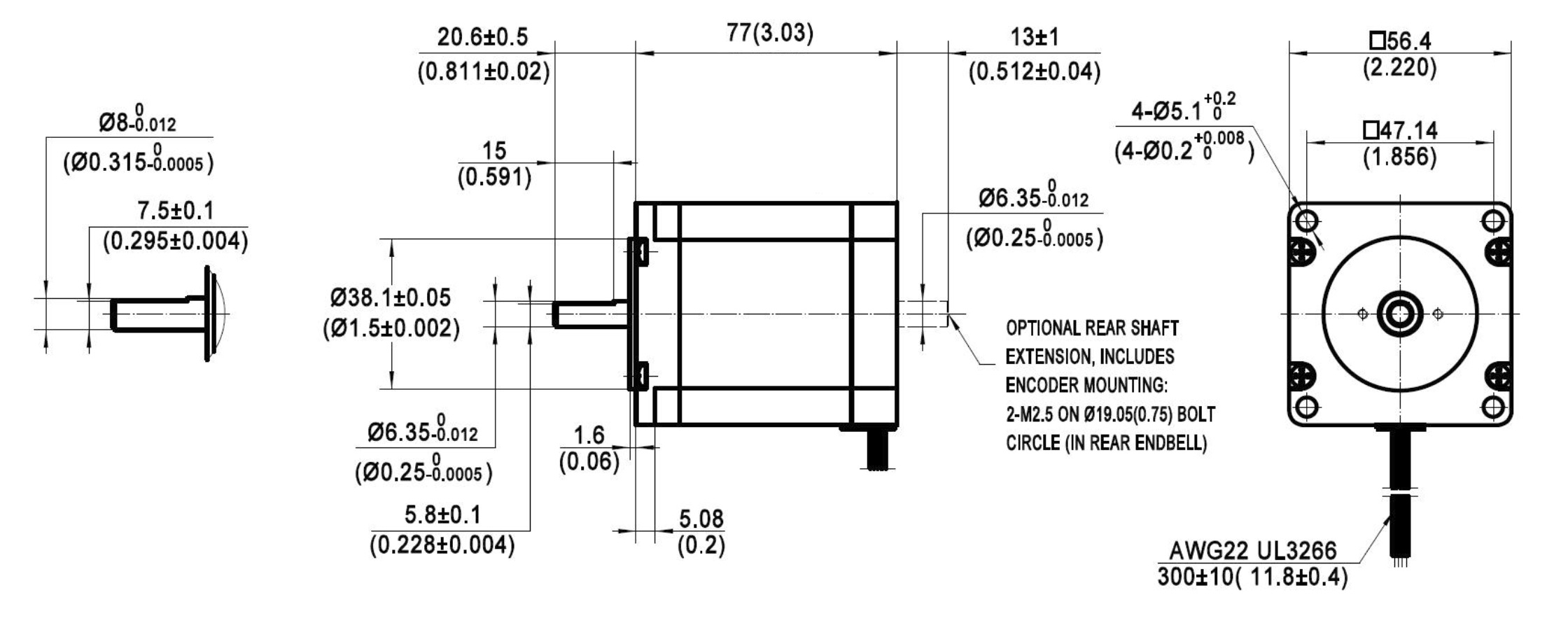

Specifications and Drawings

CYCLONE NEMA 23 High Torque Stepper Motor

Step Angle：1.8/0.9
Phase：2
Holding Torque (N.m/ oz-in): 2.3/325.73

Rated Current (A/Phase): 3.5

Resistance/phase (Ω): 0.39

Rotor Inertia (g.cm2): 390

Motor Length (mm): 77

Weight (kg): 1.0
