VOICE COIL ACTUATOR (VCA) DEVELOPER’S KIT (DK-LAS16-23-000A-P01-4E)
Product Description:

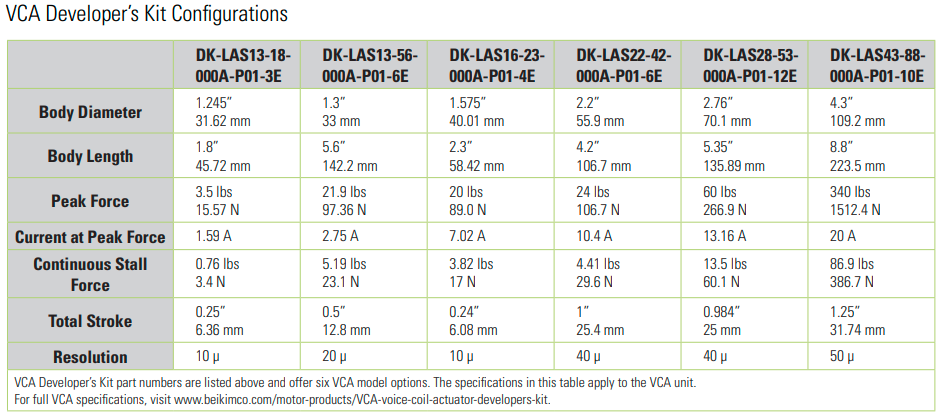

About Voice Coil Actuators (VCA) • VCA (see following chart for ordering options) • Pluto or Jupiter digital servo drive (Pluto shown) • I/O ribbon cable • USB 2.0 A male to USB micro B male cable • Key flash drive The Voice Coil Actuator (VCA) Developer’s Kit from BEI Kimco is a completely self-contained kit including a VCA with built-in feedback sensor and a programmable controller with motion control software that runs on the user’s local PC. The kit allows users to take advantage of the inherent benefits of VCAs without needing to separately specify the necessary electronics for a complete control system. Using this invaluable device, customers can quickly develop an actuation system and demonstrate a working design concept. Users can control velocity, position, force, oscillation, and acceleration in applications such as valve control, beam steering, clamping, and multi-axis servo control, when using multiple controllers. The controller has been upgraded to include an I/O board, improving its functionality by allowing users to easily interface with the controller to adjust commands given to the VCA. The I/O board features: 4 digital inputs, 1 LED per digital input and 2 analog inputs.

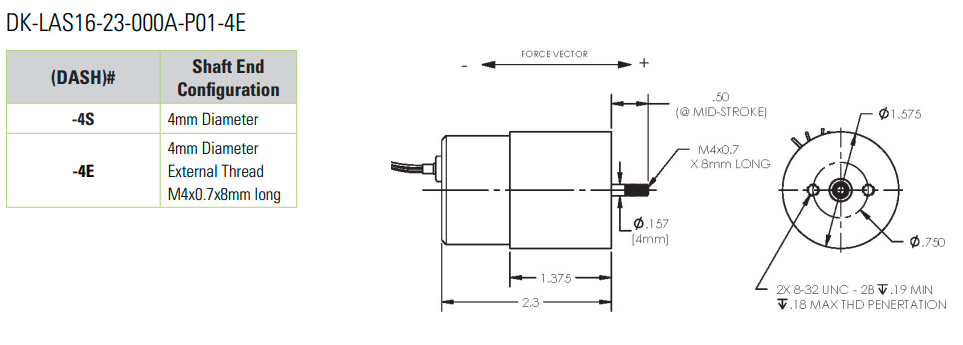

Specifications:
