Rotary Voice Coil Actuator (VCA)RA68-12-001A
Rotary voice coil actuators (VCA) from BEI Kimco are ideal for high acceleration applications that require angular movement. There are two types of designs available: Cylindrical and arc-segment. Cylindrical models are typically used in long stroke applications, whereas arc-segmented designs are better suited for short stroke and precise positioning. Rotary actuators feature all of the inherent advantages of VCA technology, such as direct-drive, zero backlash and cog free operation for accurate motion, as well as high acceleration and the use of single phase.
The BEI Kimco Magnetics' RA models are used in many applications, ranging from Z axis control in semiconductor lead bonding equipment to gimbal torques and pick-and-place robotics. Actuators feature maximum stroke of +/- 60 degrees, maximum torque of 20nm, through hole and set screw hole for easy shaft coupling and two through holes for field assembly mounting. Choices include arc-segment and cylindrical designs.
The product is rohs compliant. Moreover, it has solder terminal style. It has a dynamic load force of 120.00ozin (0.85nm). This high-efficiency motor is a voice coil. It comes in linear actuator configuration. It also exhibits voltage rating of 10.8v. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. It carries a load force (static) of 62.90ozin (0.45nm). It has a long 16 weeks standard lead time. Moreover, it corresponds to ra60-10, a base product number of the product. The product is designated with the ear99 code number.

Features:
Wide range of torque and excursion angles
Various mechanical mounting options available
Arc-segment and cylindrical designs available

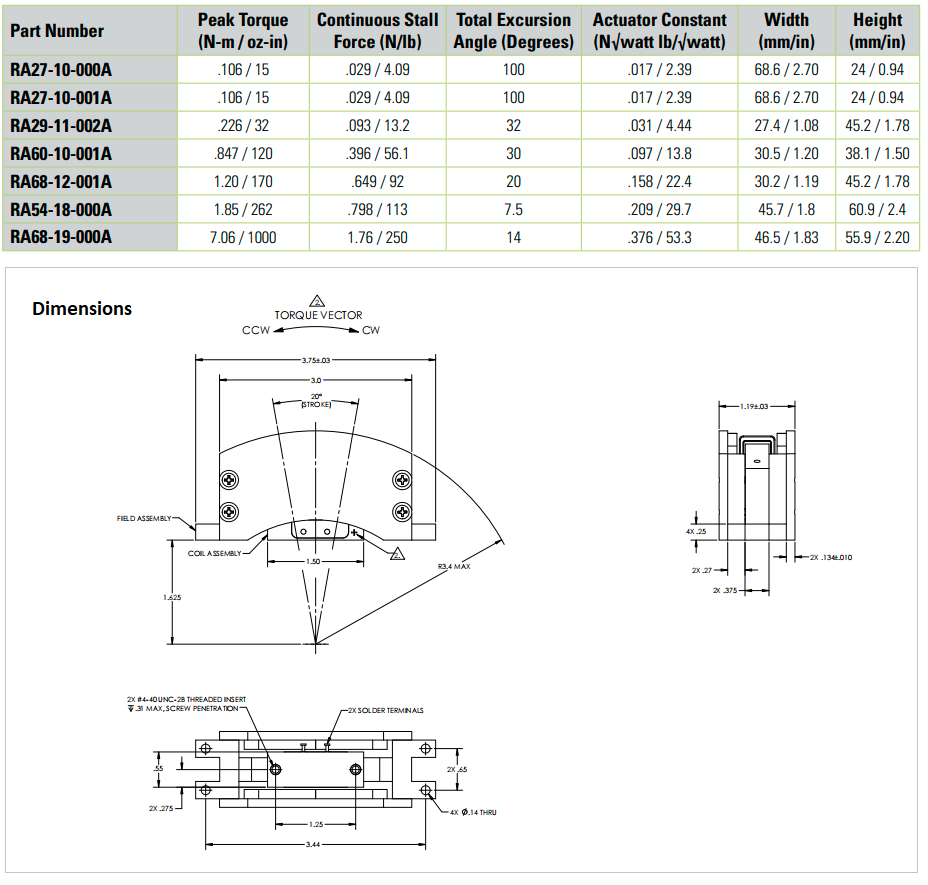

General Specifications:
