DC/DC DIN RAIL SUPPLY 48V 240W (DDR-240D-48)
Mean Well DDR-240D-48 DC-DC Ultra slim Industrial DIN rail converter; Input 67.2-154Vdc; Single Output 48Vdc at 5A.

The MEAN WELL DDR-240D-48 is a industrial, single output, DC-DC converter. This power supply has a nominal input voltage of 110 volts or can accept an input voltage between 67.2 VDC and 154 VDC. The DDR-240D-48 has an output voltage of 48 VDC at 5 amps (240 watts).

The operating temperature is -40~+70°C and comes with several safety marks including CE. The DDR-240D-48 DC-DC converter is a DIN Rail package type and its dimensions are 40 (L) x 125.2 (W) x 13.5 (H) mm. If you have questions about this MEAN WELL DC-DC converter

Features

DC-DC Industrial DIN Rail type power supply

Input range: 67.2~154 volts DC / Output: 48 volts DC, 5 amps, 240 watts

Width only 40mm

Compliance to EN50155 and EN45545-2 railway standard

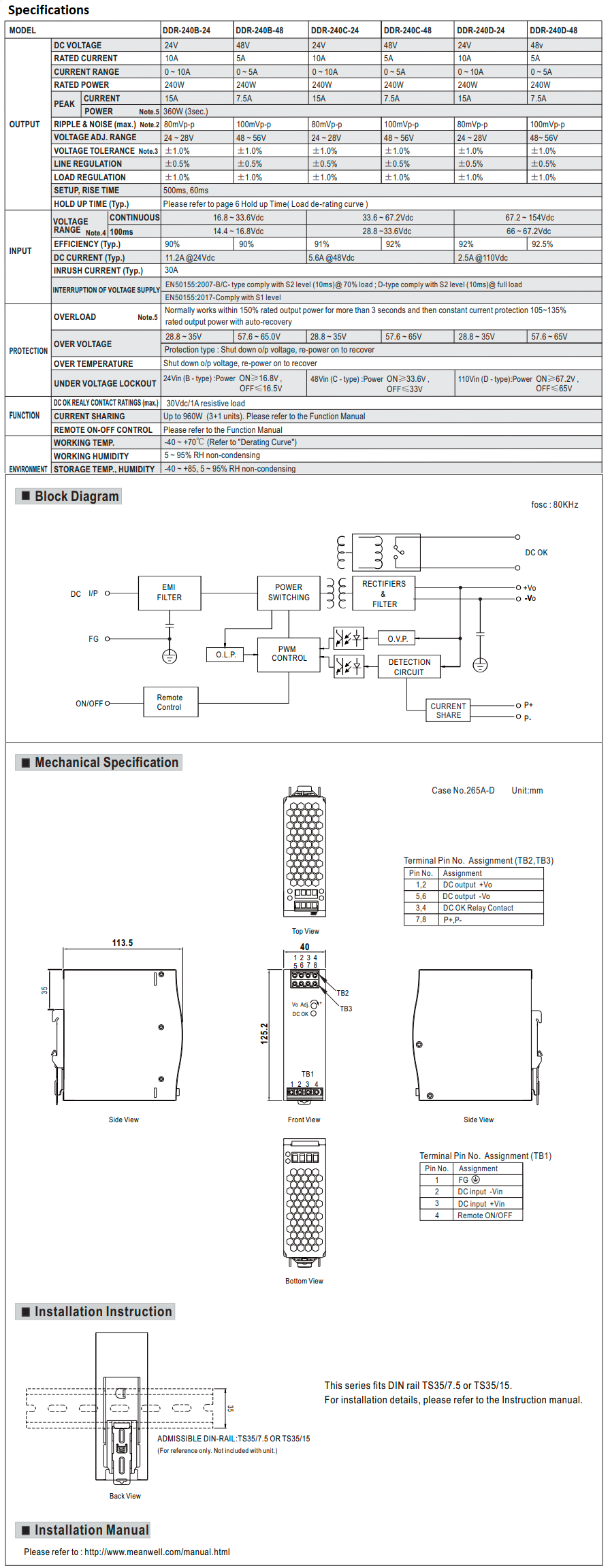

Specifications
