AC/DC DIN RAIL SUPPLY 24V 480W (TDR-480-24)
TDR-480-24 is a TDR-480 series one economical slim 240W DIN rail power supply, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. This conforms to BS EN/EN61000-3-2, the norm the European union regulates for harmonic current. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus make a very competitive power supply solution for industrial applications. It includes short circuit, overload, over voltage, over temperature protection. Application includes industrial control system, semiconductor fabrication equipment, factory automation, electro-mechanical apparatus. Approved by UL508, IEC62368-1, UL 62368-1, AS/NZS 62368.1, EAC TP TC 004, Design refer to BS EN/EN623681.

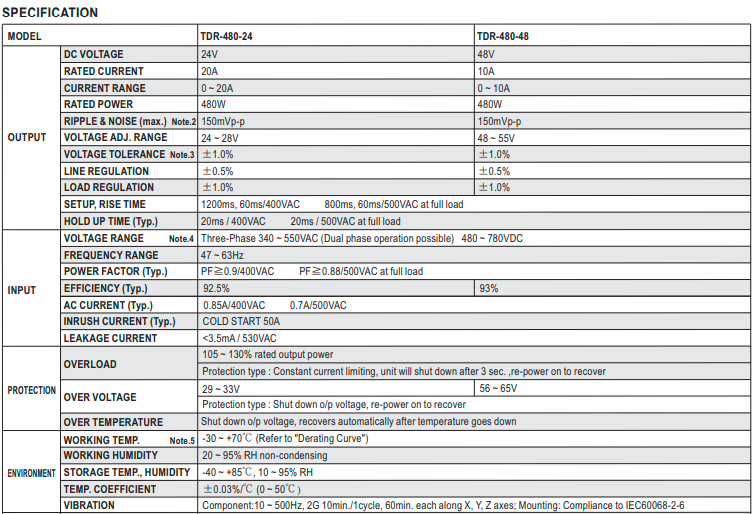

Specifications
