AC/DC DIN RAIL SUPPLY 24V 960W (TDR-960-24)
The MEAN WELL TDR-960-24 is a high-quality AC/DC power supply that delivers a reliable and stable 24V output at a current of up to 40A, with a maximum power output of 960W. This power supply is perfect for demanding industrial applications that require a robust and efficient power source. With advanced features like high efficiency, built-in protection mechanisms, and a wide operating temperature range, the TDR-960-24 ensures optimal performance and longevity. Trust MEAN WELL for your power supply needs and experience the reliability and quality they are renowned for.
TDR-240’s key features include: 340~550VAC 3-phase input (2-phase input operational), fan less design cooled by free air convection, full load operation up to +60°C, 63mm narrow width, and a size that is 43% smaller than the previous generation DRT-240 series, which can solve spacing issues in limited space. In addition, the product series complies with the industrial immunity level based on the EN61000-6-2 (EN50082-2) standards and passes UL61010/TUV EN61558-2-16/EAC/CE international safety approvals. Suitable applications include industrial control systems, semiconductor fabrication equipment, factory automation, industrial electrical equipment, as well as environments that require low noise level and fan less power supplies.

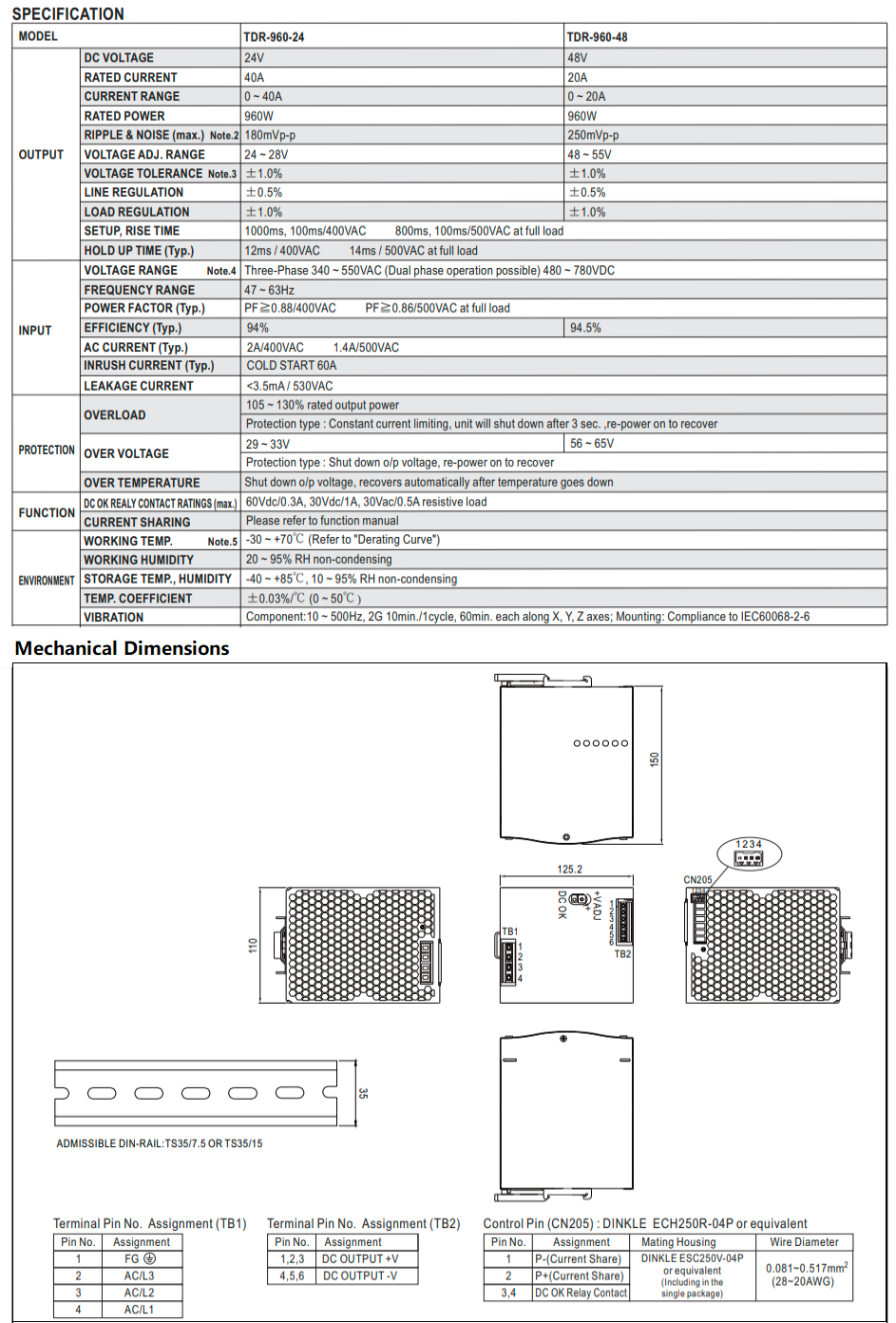

Technical details
