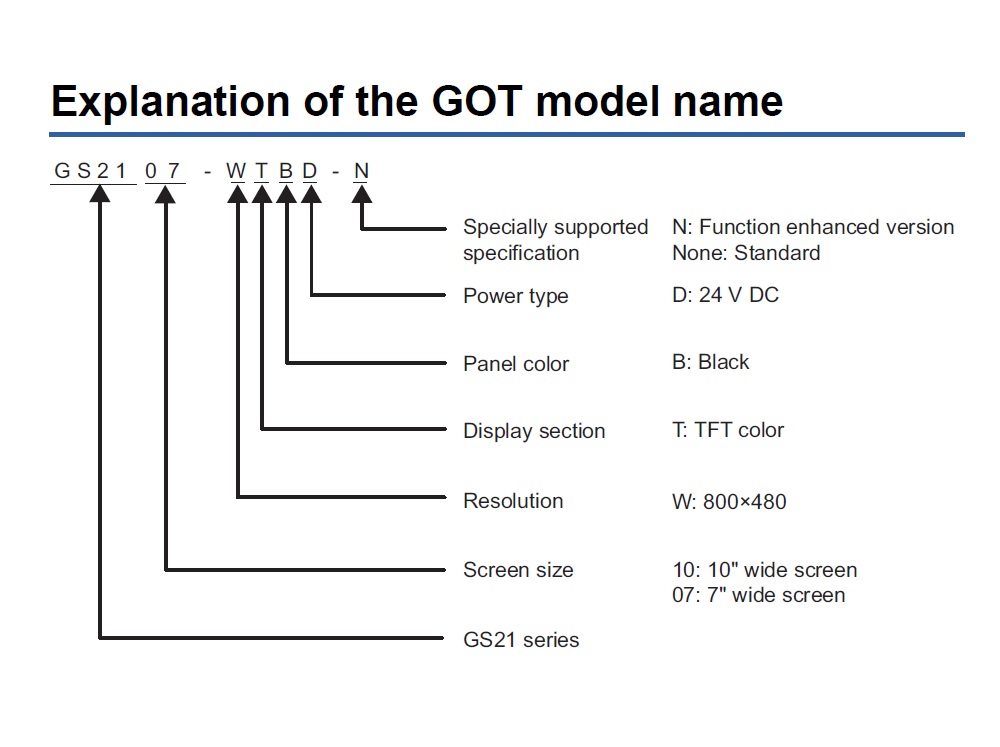

MITSUBISHI: HMI GOT SIMPLE Series：GS2107-WTBD

GOTs (Graphic Operator Terminals) provide an innovative operation and visualization interface.

The growth of your business and the speed of your production depend on many influences out of your control.

Whether your focus is centered on uptime, productivity or serviceability, Mitsubishi Electric offers a GOT solution that fits your machine, factory and enterprise level requirements.

The GOT Simple Series provides an operator interface for systems that require cost-effective performance. The GS Series’ built-in functionality provides a platform that enhances other Mitsubishi Electric components in the system with monitor tools, backup/restore of programs, and data transfer functions. High level functionality for cost sensitive applications.

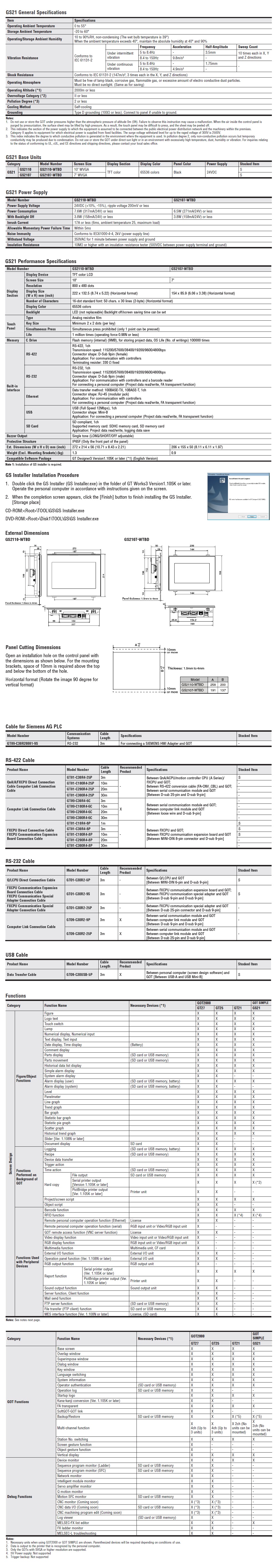

Specification

Display Type: TFT Color liquid crystal

Display Screen Size: 7’’ and 10’’

Display Color: 65536 Color

Display Backlights: LED-type (no replacement required)

Touch panel Type: Analog-resistive film type

Touch panel Key size: Minimum 2 × 2 dots (per key)

User memory capacity: 9MB

Communication Ports: Ethernet, SD card, USB device, RS-232 and RS422

Operating Ambient Temperature: 0 to 50°C

Storage Ambient Temperature: -20 to 60°C

Operating/Storage Ambient Humidity: 10% RH to 90% RH, non-condensing

Shock Resistance: Conforms to IEC 61131-2 (147 m/s2, 3 times each in the X, Y, and Z directions)

Operating atmosphere: No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)

Operating altitude: 2000m (6562ft) max.
