MITSUBISHI: HMI GOT 21 Series: GT2103-PMBDS

The GOT2000 Series HMI provides a range of models to fit a variety of performance and screen size requirements. All models provide advanced features that improve operator efficiency and performance.

The GT21 series is a compact and cost-effective wide-screen graphical operator terminal with WVGA resolution and is available with either a black or silver bezel.

Compact and cost-effective industrial wide HMIs with enhanced functionality, and improved visualization graphics for mid-size and small applications.

Key Benefits

• Improved Visibility – The wide-screen elegant body style presents a large amount of information with high picture quality.
• 2 USB Ports (Device and Host) – Convenient to transfer projects, access data logging, and connect mouse or keyboard (host compatible devices).
• Interactive Display – Seamless integration with Mitsubishi Electric devices, such as inverters, servos, and robots, for monitoring and parameter adjustments. The terminal can also be connected to various industrial devices and offers many connection types.
• Maintenance Platform – On-demand portal for accessing system information such as device monitoring, program backup and restore function, and servo maintenance.
• Smart Analysis – Collect data from PLC controllers and other devices and display it in graph or list configuration for further system performance analysis.

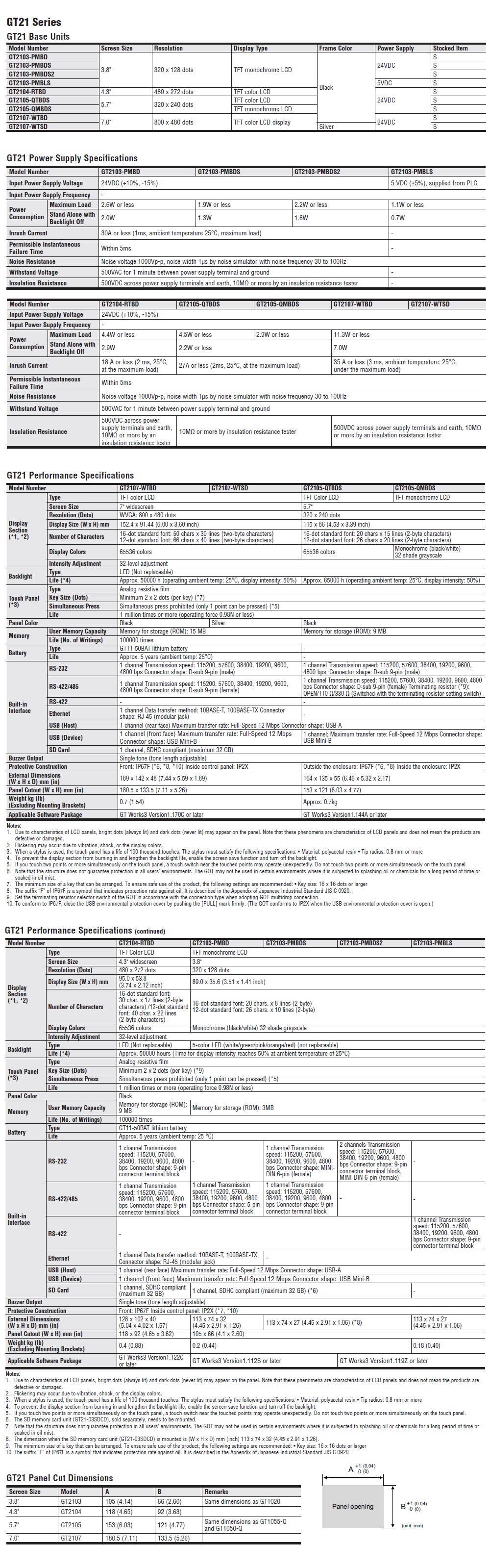

Specification

• Display Type: TFT Color LCD
• Display Screen Size: 3.8’’ Widescreen
• Display Resilution: 320 x 128 dots
• Display Backlights: 5-color LED (white/green/pink/orange/red) (not replaceable)
• Touch panel Key size: Minimum 2 × 2 dots (per key)
• User memory capacity: 3MB
• Communication Ports: SD card, USB Host, USB device, RS-232,RS422/485
• Operating Ambient Temperature: 0 to 50°C
• Storage Ambient Temperature: -20 to 60°C
• Operating/Storage Ambient Humidity: 10% RH to 90% RH, non-condensing
• Shock Resistance: Conforms to IEC 61131-2 (147 m/s2, 3 times each in the X, Y, and Z directions)
• Operating atmosphere: No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
• Operating altitude: 2000m (6562ft) max.
