Omron: DC Input Unit (24 VDC, 16 Points) CJ1W-ID211

Digital input unit, 16 x 24 VDC inputs, screw terminal, 16 Inputs, 7mA, 24VDC, Input Module, CJ Series, DIN Rail Mount

Price : $404.21

Quantity in Stock:1145

Availability: Usually Ships in 3 to 5 Business Days
Order #: CJ1W-ID211

Qty:

Description

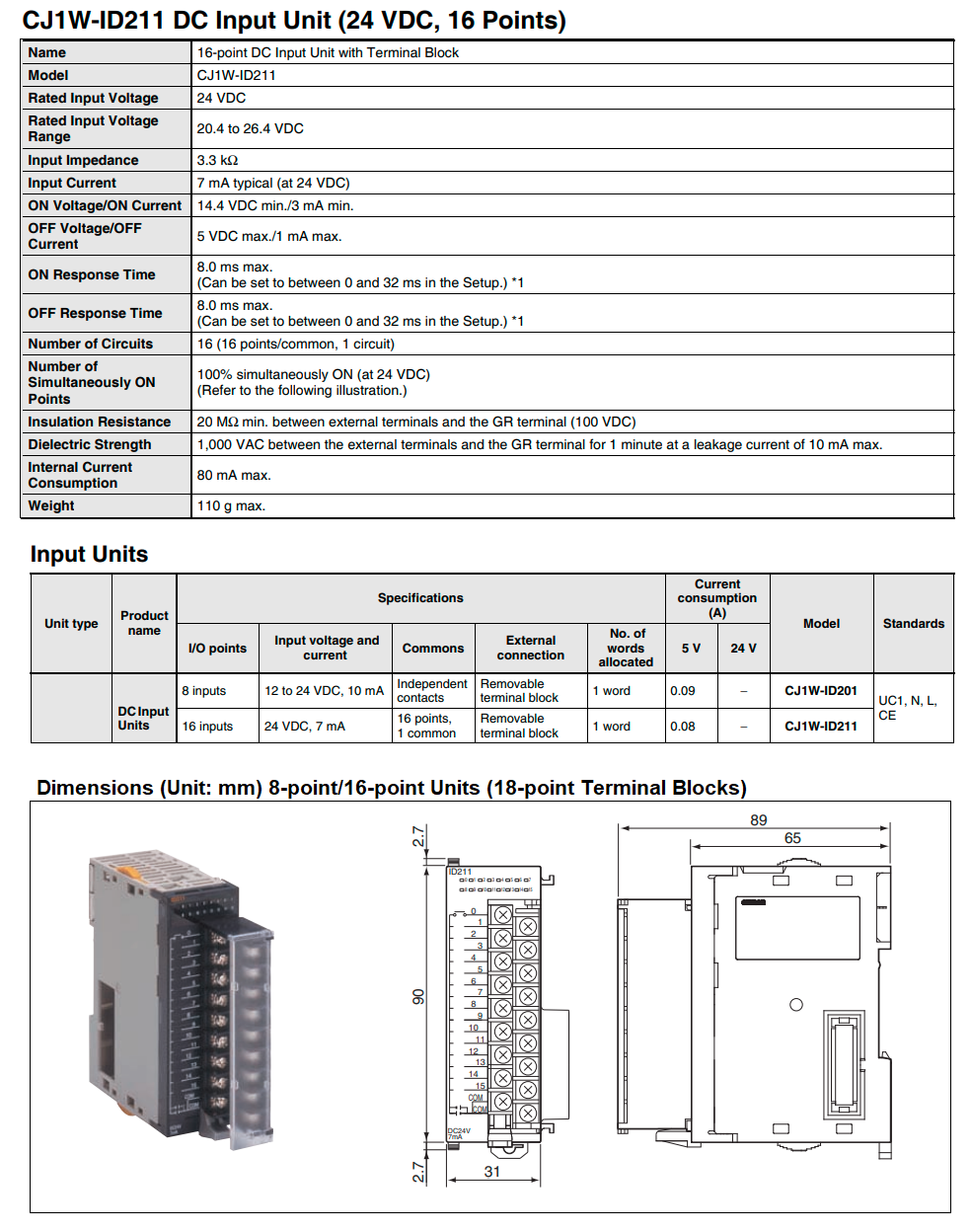

Specifications and Drawings

DC Input Unit (24 VDC, 16 Points) CJ1W-ID211

A Wide Range of Basic Input Units for High Speed Input and Different Applications.

Receive ON/OFF signals from external devices into the PLC System to update I/O memory in the CPU Unit.

New high-speed input models CJ1W-ID212 and CJ1W-ID233 are now available. These units can help to increase system throughput.

Features

• High-speed input models are available, meeting versatile applications. ON Response Time: 15μs, OFF Response Time: 90μs

• Use 24-VDC, 100-VAC, and 200-VAC models to connect to devices with different types of outputs.

• The 24-VDC models can be connected to devices with either NPN or PNP outputs. There is no need to select the polarity.

• A digital filter in the Unit can be set from 0 to 32 ms to reduce the influence of external noise.

• Either a Fujitsu or MIL connector interface can be used.

• Several models of Terminal Block Conversion Units are available, making it easy to connect to external devices.
Technical Specifications

Name	16-point DC Input Unit with Terminal Block
Model	CJ1W-ID211
Rated Input Voltage	24 VDC
Rated Input Voltage Range	20.4 to 26.4 VDC
Input Impedance	3.3 kΩ
Input Current	7 mA typical (at 24 VDC)
ON Voltage/ON Current	14.4 VDC min./3 mA min.
OFF Voltage/OFF Current	5 VDC max./1 mA max.
ON Response Time	8.0 ms max. (Can be set to between 0 and 32 ms in the Setup.) *1
OFF Response Time	8.0 ms max. (Can be set to between 0 and 32 ms in the Setup.) *1
Number of Circuits	16 (16 points/common, 1 circuit)
Number of Simultaneously ON Points	100% simultaneously ON (at 24 VDC) (Refer to the following illustration.)
Insulation Resistance	20 MΩ min. between external terminals and the GR terminal (100 VDC)
Dielectric Strength	1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max.
Internal Current Consumption	80 mA max.
Weight	110 g max.
