Transistor Output Unit (16 Points) CJ1W-OD212

A Wide Range of Basic Output Units for High Speed Output and Different Applications

These Output Units receive the results of output instructions from the CPU Unit and perform ON/OFF control for external devices.

Features

• High-speed output models are available, meeting versatile applications. ON Response Time: 15μs, OFF Response Time: 80μs

• Output Units are available with any of three output types: relay contact outputs, triac outputs, or transistor outputs.

• For transistor outputs, select from sinking outputs or sourcing outputs.

• Output Units with load short-circuit protection are also available.

• Select the best interface for each application: Fujitsu connectors or MIL connectors.

• A wide variety of Connector-Terminal Block Conversion Units are available to allow you to easily wire external output devices.

Available for models with 32 outputs or 64 outputs

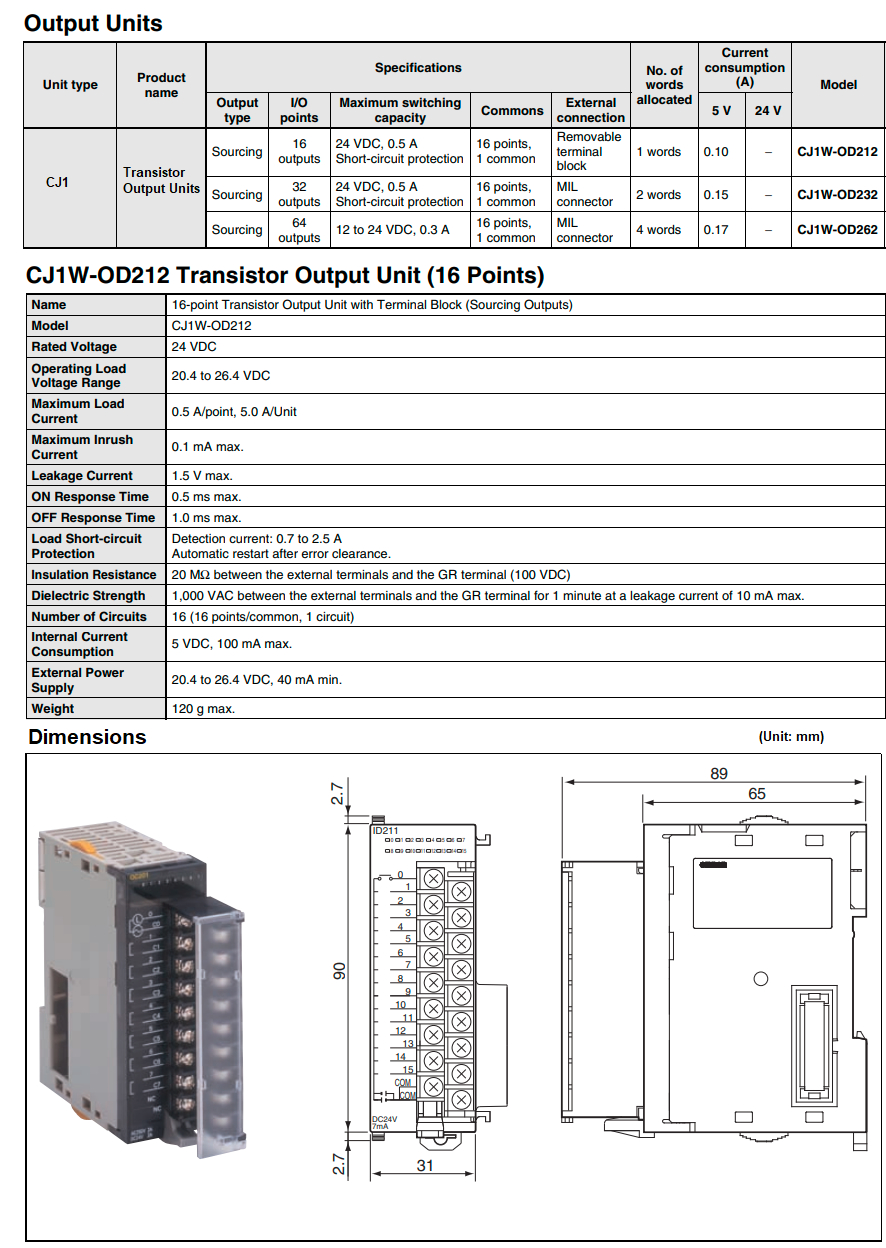

Technical Details:
