CONTROL LOGIC 24 IN 16 OUT 24V (CP1L-EM40DR-D)
High Performing Programmable Controller with Embedded Ethernet.
When it comes to controllers for compact machines, CP1L series offers the compactness of a micro-PLC with the capabilities of a modular PLC. It provides all the functionality you need to control your machine, including outstanding positioning capability. On top of this some CP1L models have an embedded Ethernet port with socket services functionality to give you flexible connectivity for monitoring, operating, logging and remote access. The CP1L is completed with a range of optional boards for serial communication or analogue I/O and further expansion units in case more I/O is needed. As the CP1L series shares the same architecture as the CP1H, CJ1, and CS1 series, programs are compatible for memory allocations and instructions.

Features:
• CP1L-EL have complete with an Ethernet port.
• Pulse output for two axes. Advanced power for high-precision positioning control.
• High-speed Counters. Single-phase for four axes.
• Six interrupt inputs are built in. Faster processing of instructions speeds up the entire system.
• Serial Communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• "CP1L-M" and "CP1L-L" have a peripheral USB port.
• The Structured Text (ST) Language. Makes math operations even easier.
• Can be used for the CP1W series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.

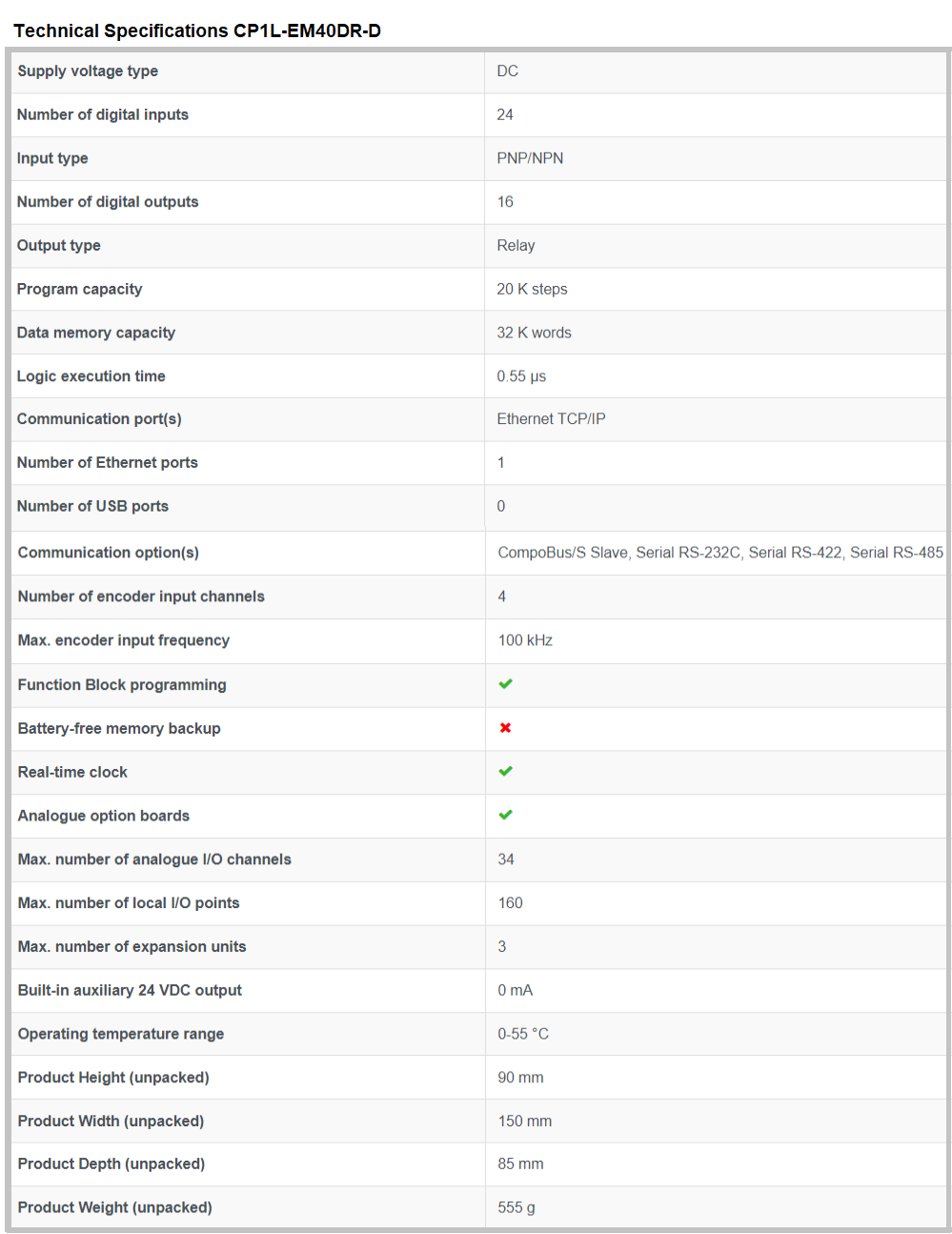

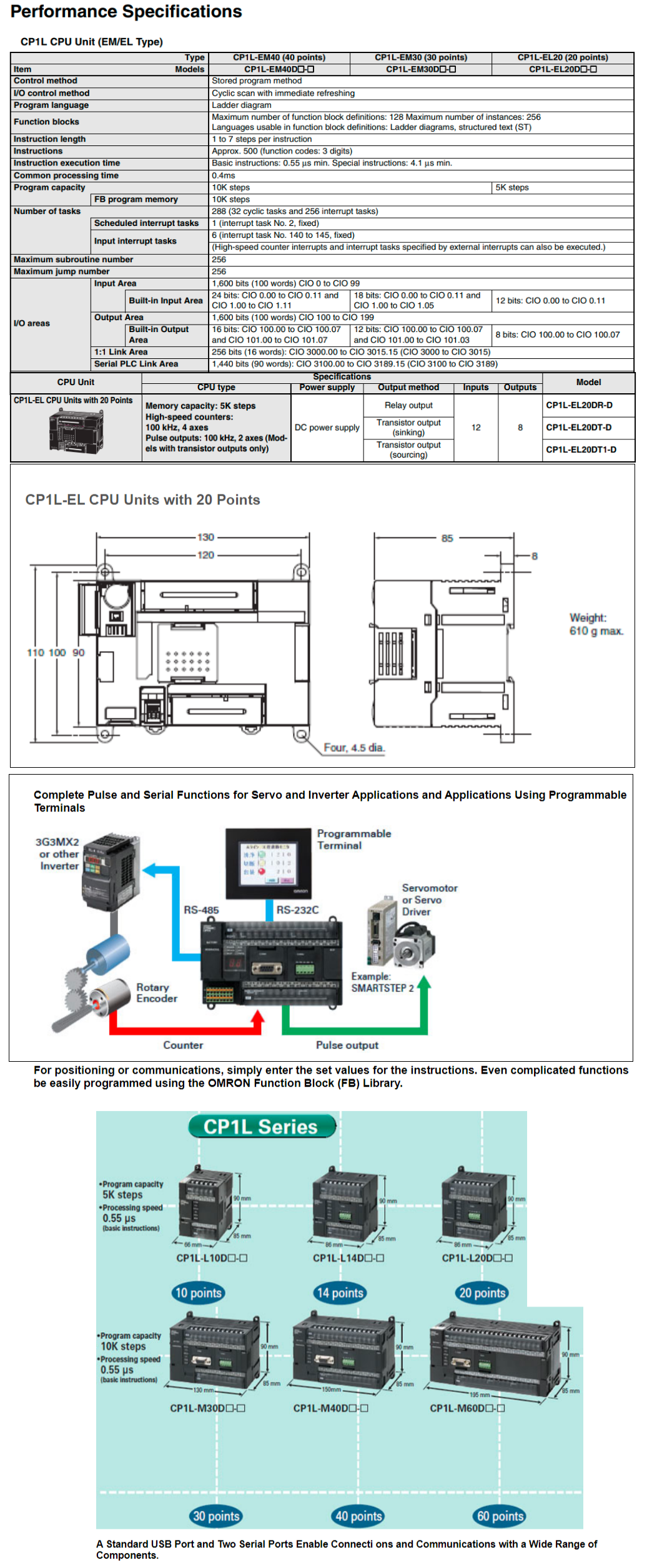

Specifications:
