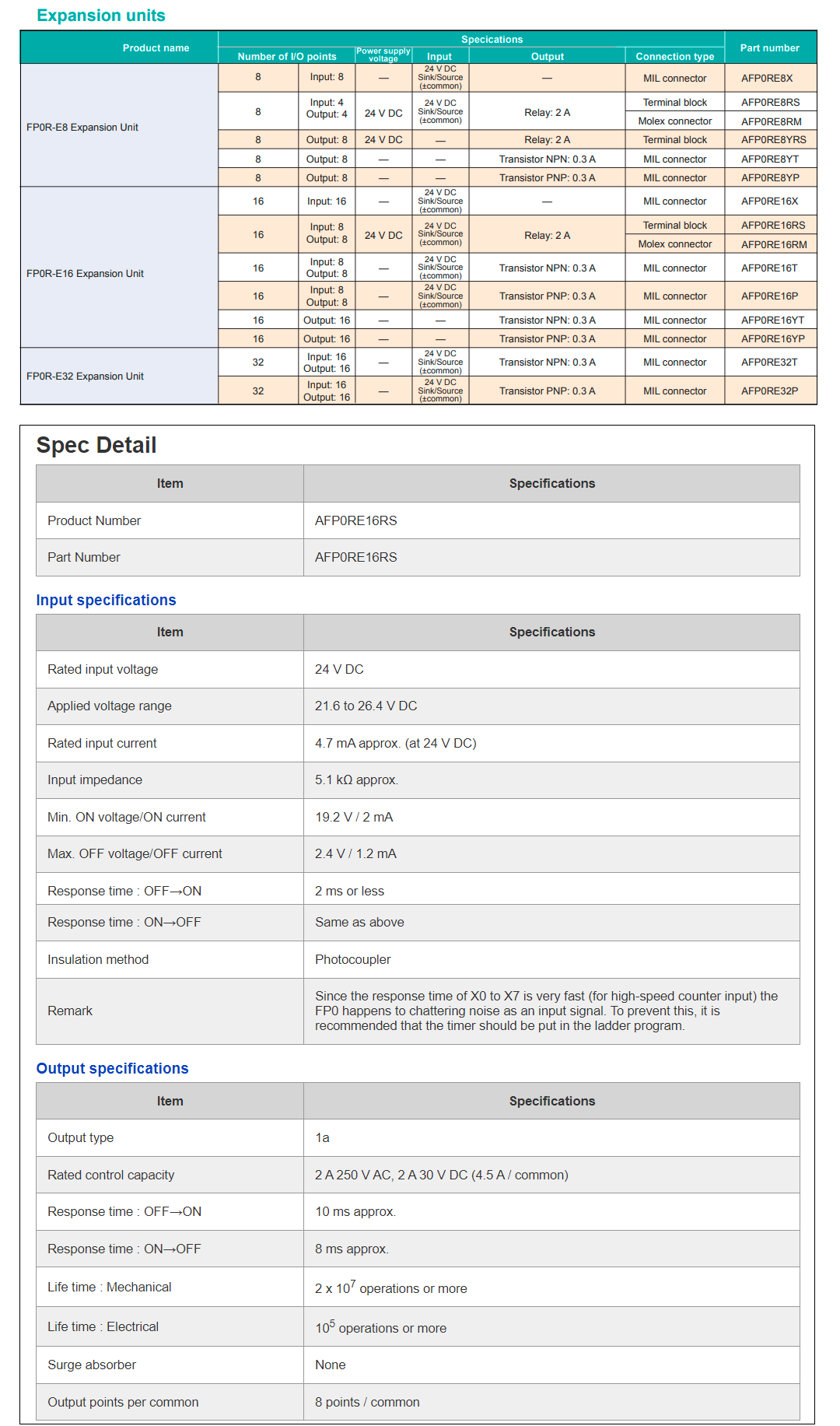

Panasonic: Expansion Unit I/O Module 8 Digital 8 Relay (AFP0RE16RS)

The Panasonic/Sunx AFP0RE16RS is an expansion unit specially designed for programmable controllers. It enables the controllers to extend their input and output capabilities, allowing for the connection of additional devices and sensors. With this expansion unit, users can easily scale up their automation systems and tailor them to meet specific requirements. The AFP0RE16RS expansion unit provides reliable and efficient performance, making it an excellent choice for enhancing the functionality of programmable controllers.
By adding expansion units, the number of I/O points can be increased. However, the maximum number of expansion units per CPU is limited. A maximum of three expansion units can be connected on the right side of the FP0R CPU, these expansion units being either I/O expansion units or intelligent units. A combination of relay output types and transistor output types is also possible.
