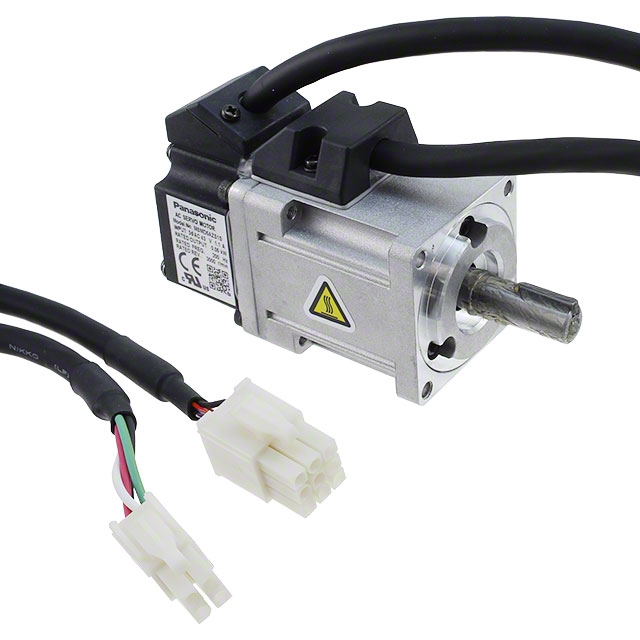

Panasonic: AC SERVO MOTOR 3000 RPM 100/200V (MSMD5AZS1S)

50W, 17bit, Absolute Encoder Motor, 100/200V, Key & Tap Shaft

Price : $948.91

Quantity in Stock:55

Availability: Usually Ships in 3 to 5 Business Days
Order #: MSMD5AZS1S

Qty:

Description

Ordering Information

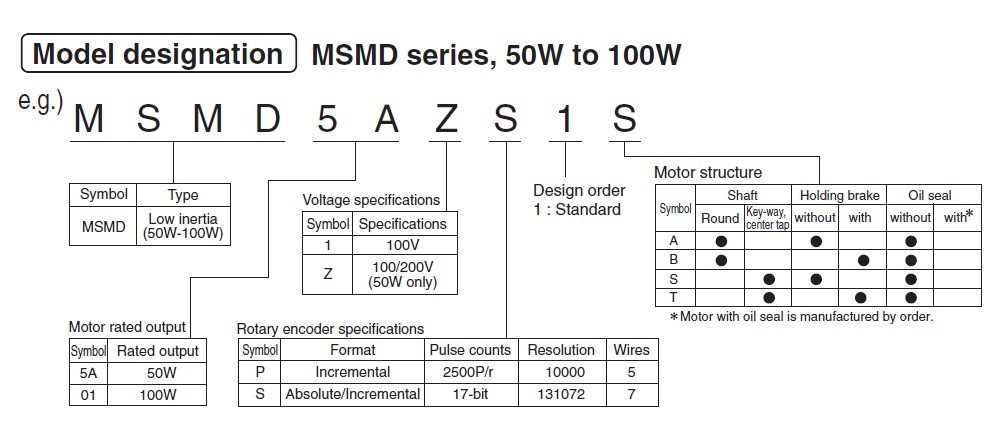

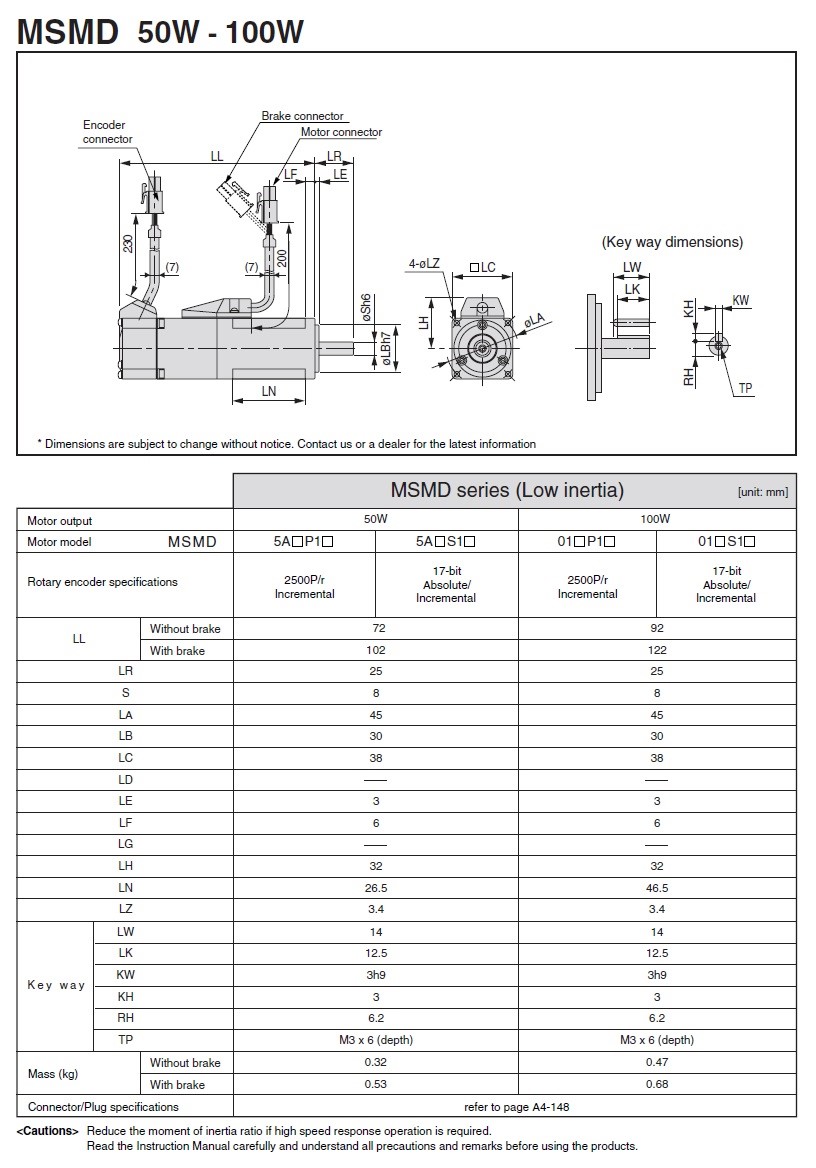

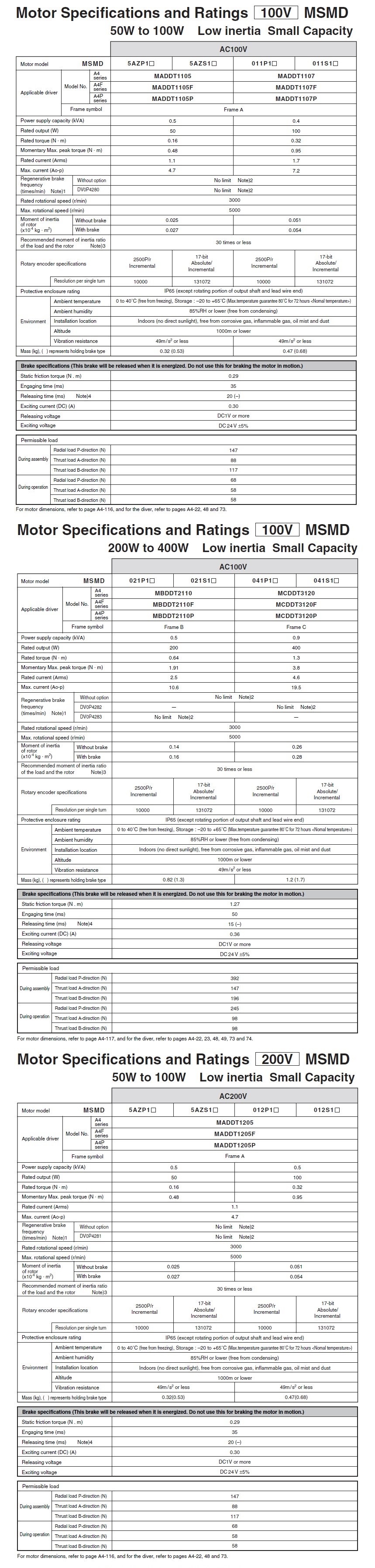

Specifications and Drawings

AC SERVO MOTOR 3000 RPM 100/200V (MSMD5AZS1S)

Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with over-travel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.

Item	Specifications
Part Number	MSMD5AZS1S
Details	Low inertia, Lead wire type, IP65
Family Name	MINAS A5
Series	MSMD Series
Type	Low inertia
Protection class	IP65
About Enclosure	Except rotating portion of output shaft and leadwire end.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	38 mm sq.
Flange sq. dimension (Unit:mm)	38
Motor lead-out configuration	Lead wire
Motor encoder connector	Lead wire
Power supply capacity (kVA)	AC100 V : 0.4 kVA
Power supply capacity (kVA)	AC200 V : 0.5 kVA
Rated output (W)	50
Rated current (A (rms))	1.1
Holding brake	without
Mass (kg)	0.32
Oil seal	without
Shaft	Key-way, center tap
Rated torque (N ⋅ m)	0.16
Momentary Max. peak torque (N ⋅ m)	0.48
Max. current (A (o-p))	4.7
Regenerative brake frequency (times/min)	Without option :No limit
	With option :No limit
	Option (External regenerative resistor) Part No. : DV0P4280 (For AC100 V) , DV0P4281 (For AC200 V)
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	3000
Rated rotational Max. speed (r/min)	5000
Moment of inertia of rotor ( x10^-4 kg ⋅ m²)	0.025
Recommended moment of inertia ratio of the load and the rotor	30 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications	17-bit Absolute/Incremental system
Notice	When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution	131072
