MM magnetic proximity sensors provide long sensing ranges that can reliably detect magnetic objects. Magnetic proximity sensors are resistant to dust, heat, vibrations and other harsh environments. The MM magnetic sensors are enclosed in a cylindrical housing and are available in sizes MM08, MM12 and MM18.

Benefits

Non-contact operation eliminates interference from dirt, dust and vibrations, increasing sensor life and reducing maintenance costs

Space-saving installation due to small design

Large operating ranges with reliable switching increase throughput

Non-contact, universal detection through several substances, including plastic containers and pipes protective PTFE walls and non-magnetic metal walls

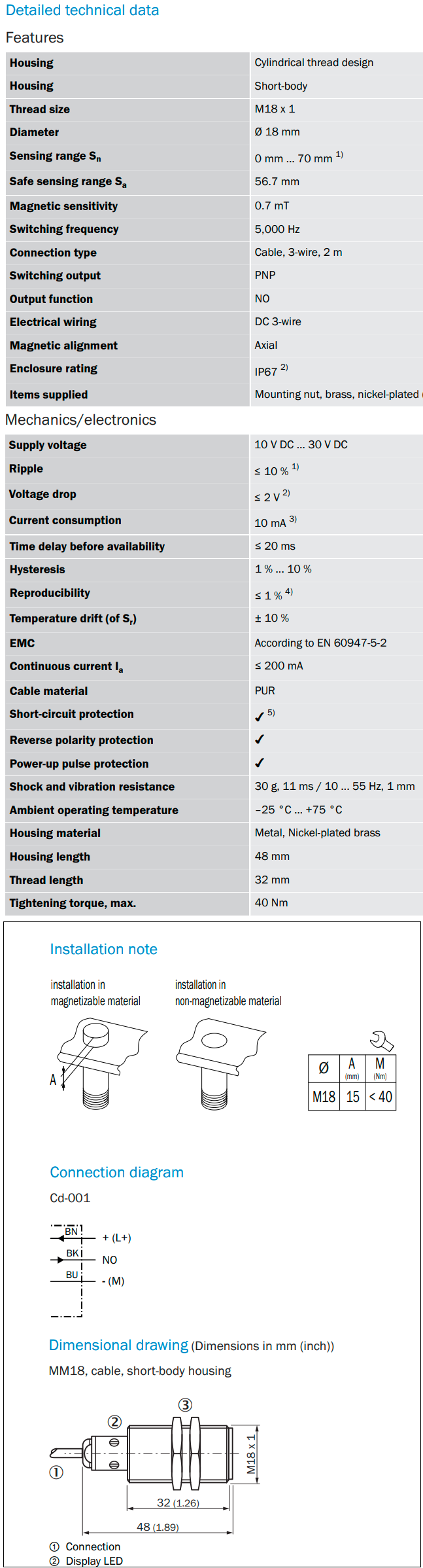

Features

Types: M8 to M18

Sensing range: up to 120 mm

Electrical configuration: DC 3-wire

Enclosure rating: IP 67

Temperature range: –25 °C to +75 °C

Nickel-plated brass housing; plastic sensing face

Reliable detection of permanent magnets through non-ferromagnetic materials such as stainless steel, aluminum, plastic or wood

Solves high-temperature applications by installing the permanent magnet in the high-temperature area and the sensor behind an insulated area
