NON-CONTACT SAFETY SWITCH RE27-SA10L
RE2 magnetic safety switches are equipped with either complementary NC/NO contacts or equivalent N/O contacts which are addressed directly with coded magnetic actuators. Magnetic safety switches are used in areas where a high level of contamination occurs. They are simple to clean, thereby enabling high standards of hygiene. Their principle of operation enables greater tolerances, making them ideal for applications where precise guidance of the protective device is difficult.

Benefits

Long service life due to durable and low-maintenance design

Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e and Cat. 4 (EN ISO 13849)

High level of machine availability due to high tolerances for door misalignment

The devices are easy to clean, making them suitable for contaminated areas or environments with strict hygiene standards

Fast diagnostics via LED status indicator (RE27)

Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort.

Features

Response range of up to 9 mm

2 or 3 contacts

Up to performance level PL e / Cat. 4 (EN ISO 13849)

Sensors with plug connector or connected cable

LED status indicator (RE27)

Flexi Loop-compatible M12 plug connector (depending on variant)

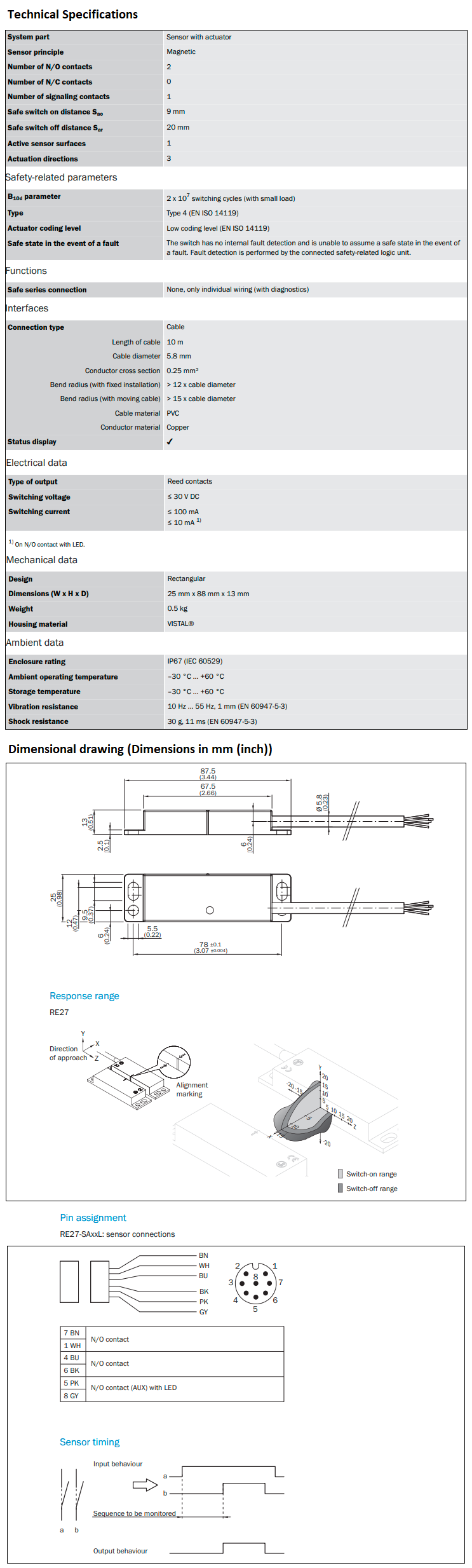

Specifications:
