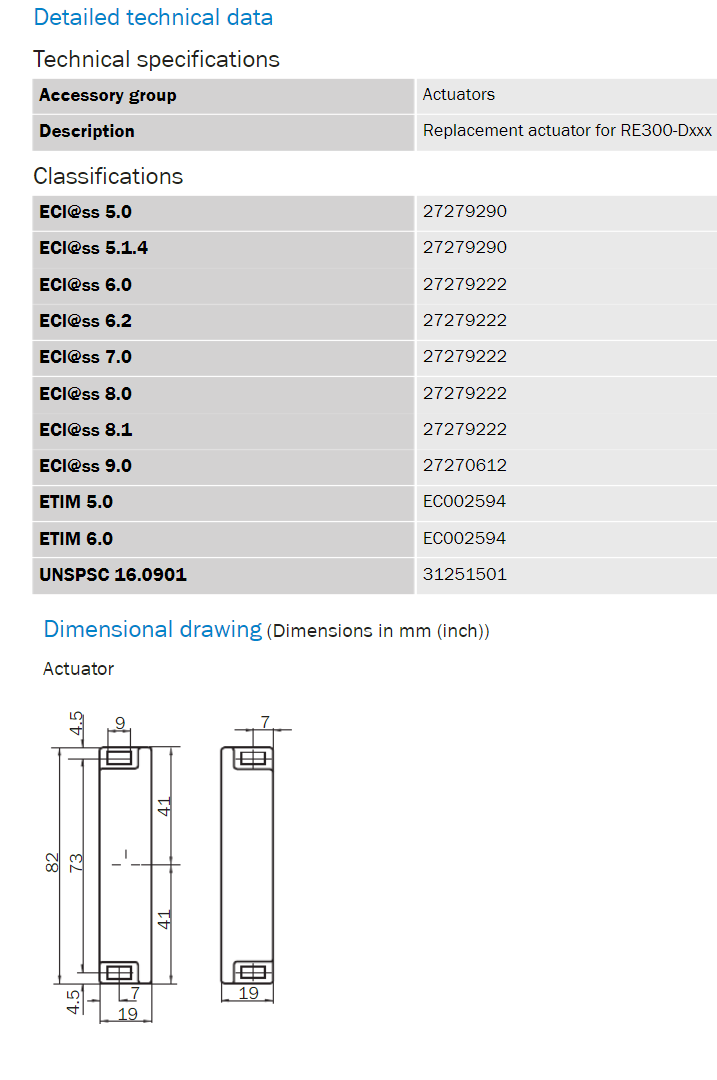

SENSOR REED SW ACTUATOR, RE300-KA

RE300Simple and established non-contact door monitoring

RE300 magnetic safety switches are equipped with complementary-switching normally open (NO)/normally closed (NC) contacts that use coded magnetic actuators. Magnetic safety switches can be used in areas where a high level of contamination occurs. The devices are easy to clean, making them suitable for contaminated areas or environments with strict hygiene standards. Their operating principle enables greater tolerances, making them ideal for applications where precise guidance of guards is difficult.

Features

1 NO/1 NC contact

Response range of up to 5 mm

Up to performance level PL e / Cat. 4 (EN ISO 13849)

Direct connection to safe control solution possible

Sensors with connected cable

Benefits

Long service life due to durable and low-maintenance design

Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e and Cat. 4 (EN ISO 13849)

High level of machine availability due to high tolerances for door misalignment

The devices are easy to clean, making them suitable for contaminated areas or environments with strict hygiene standards

Direct connection to the safe control solution eliminates any additional wiring and reduces installation time
