Features:

• High accuracy (Smooth operation)

• Energy-saving (High efficiency)

Power loss has been reduced by up to approximately 30% and efficiency has been increased by 10% compared with our conventional DC servo motors. This reduces heat generation within equipment and contributes to energy savings.

• Low noise

Brush vibrations have been reduced, and the rigidity of motor parts has been improved. Compared with our conventional DC servo motors,* noise levels have been reduced by up to 8 dB.

• Low-voltage models available

In addition to 75 VDC class models, low-voltage (24 VDC class) models are also available. The low-voltage models are safe for use in medical equipment and other applications close to people.

• IP43 protection rating

All servo motors have a protection rating of IP43.

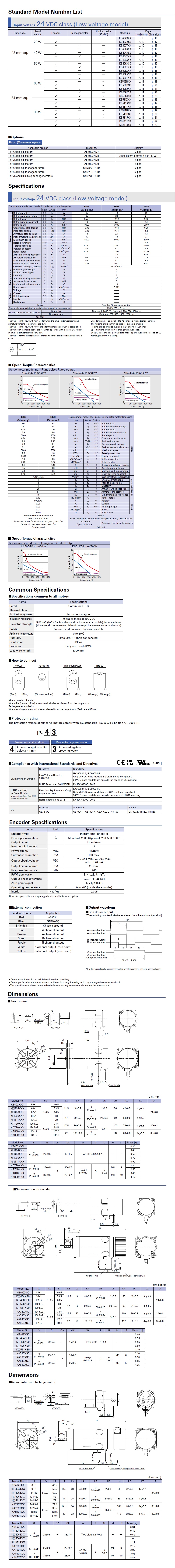

Specifications:

• Flange size : 42 mm sq.
• Rated Output Power: 23 - 60 W
• Rated armature voltage: 20 - 24 VDC
• Rated Torque：0.074 – 0.19 Nm
• Continuous stall torque: 0.08 - 0.20 Nm
• Peak Stall Torque: 0.42 – 1.2 Nm
• Rated speed: 3000 RPM
• Maximum speed: 5000 RPM
• Tachogenerator : Optional
• Encoder :Line drive : Standard: 2000 P/R, Optional: 200, 500, 1000 P/R Open collector: Optional: 200， 500， 1000， 2000 P/R
