Sanyo Denki: SANMOTION G Series Linear Servo Motors DS&DT Series

Linear servo systems are suitable for applications requiring high speed and high accuracy.
These products are suitable for applications such as semiconductor manufacturing equipment, LCD manufacturing equipment, chip mounters, wire bonders, and conveyors.

Features:

· No magnetic attraction force on devices

This is the industry’s first center magnet type linear servo motor. Magnetic attraction forces are canceled out within the motor structure, simplifying device construction.

· Industry-leading acceleration

Featuring industry-leading 25 G acceleration. This enables fast device driving, contributing to shorter device cycle time and improved productivity.

· Compact, large thrust

The center magnet type is 30% smaller, and the dual magnet type is 12% smaller than our conventional model. Moreover, the thrust densities of the center magnet type and the dual magnet type are 42% and 13% —which is the top in the industry

Overview:

· Rated Trust: 140N to 350N

· Max. Trust: 270N – 700N

· Rated Speed: 1.9 m/s to 2.3 m/s

· Max. Speed: 2.5 m/s to 3.2 m/s

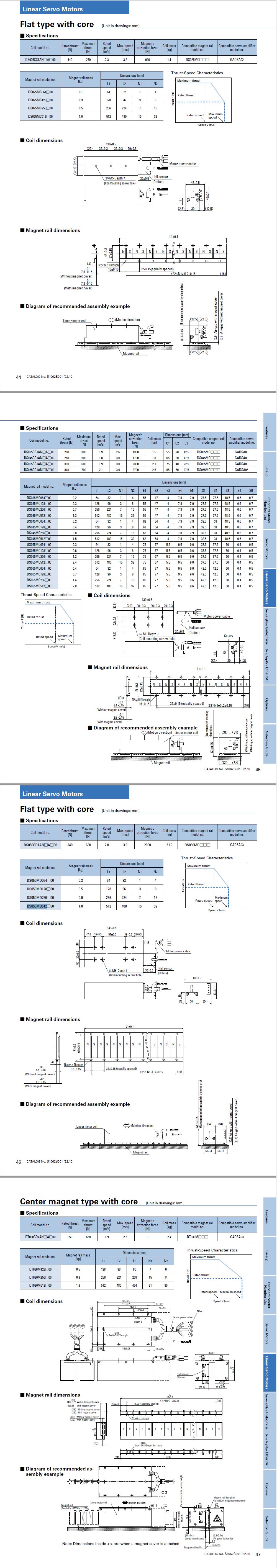

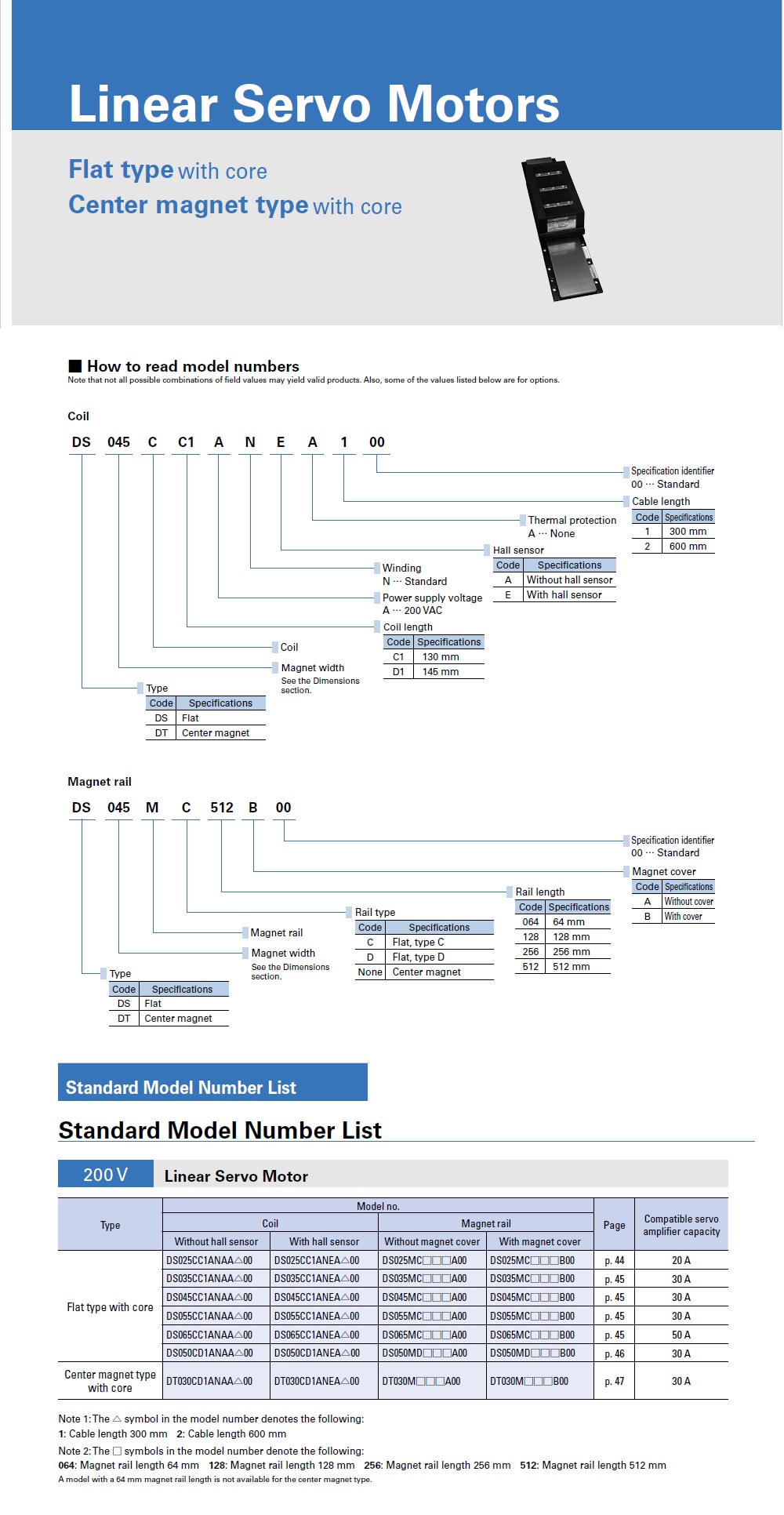

Model No.:

· Coil Model No.: DS025CC1AN, DS035CC1AN, DS045CC1AN, DS055CC1AN, DS065CC1AN, DS050CD1AN, DT030CD1AN

· Magnet Rail Model No.: DS025MC064, DS025MC128, DS025MC256, DS025MC512, DS035MC064, DS035MC128, DS035MC256, DS035MC512, DS045MC064, DS045MC128, DS045MC256, DS045MC512, DS055MC064, DS055MC128, DS055MC256, DS055MC512, DS065MC064, DS065MC128, DS065MC256, DS065MC512, DS050MD064, DS050MD128, DS050MD256, DS050MD512
