SIMATIC ET 200SP, digital input module 6ES7131-6BF00-0CA0
The SIMATIC ET 200SPI/O system is a highly flexible, modular I/O system with IP20 protection.it can exchange IO data of the connected I/O modules with a higher-level control system.ET200SP components are available as SIPLUS version for extreme requirements and high degree of robustness. Via an interface module with PRODINET or PROFIBUS interface it can exchange IO data of the connected I/O modules with higher-level control system.
SIMATIC ET 200SP, digital input module, DI 8x 24 V DC High Feature, input type 3 (IEC 61131), sink input, (PNP, sink input) Packing unit: 1 unit, suitable for BU type A0, color code CC01, input delay 0.05..20 ms; Channel diagnostics for: Encoder power supply short circuit, wire break, supply voltage, channel fault LED

SIMATIC ET200 IP20. ET200SP, 1 electronic module of digital inputs for ET 200SP, 8 ED x 24V DC HIGH FEATURE. Suitable for BaseUnit type A0, CC01 color code, channel diagnostics
The module has the following technical properties:
● Digital input module with 8 inputs
● Sink input (PNP, active high)
● Supply voltage L+
● Configurable input delay 0.05 ms to 20 ms (per channel)
● Configurable diagnostics (per channel)
● Configurable hardware interrupts (per channel)
● Suitable for connection of switches and 2-wire sensors according to IEC 61131, type 1
and 3

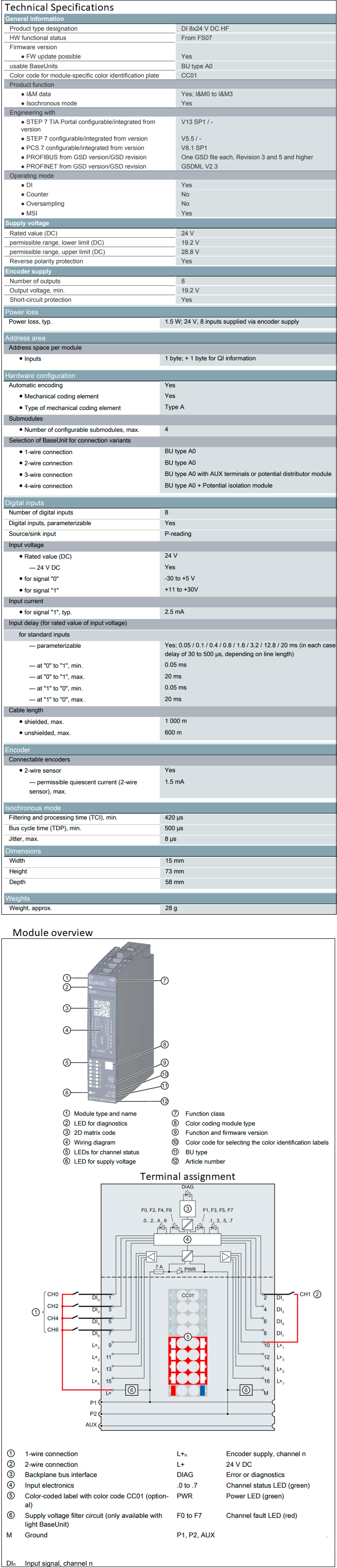

General Specifications
