SIMATIC ET 200SP, Digital input module 6ES7131-6BF01-0BA0

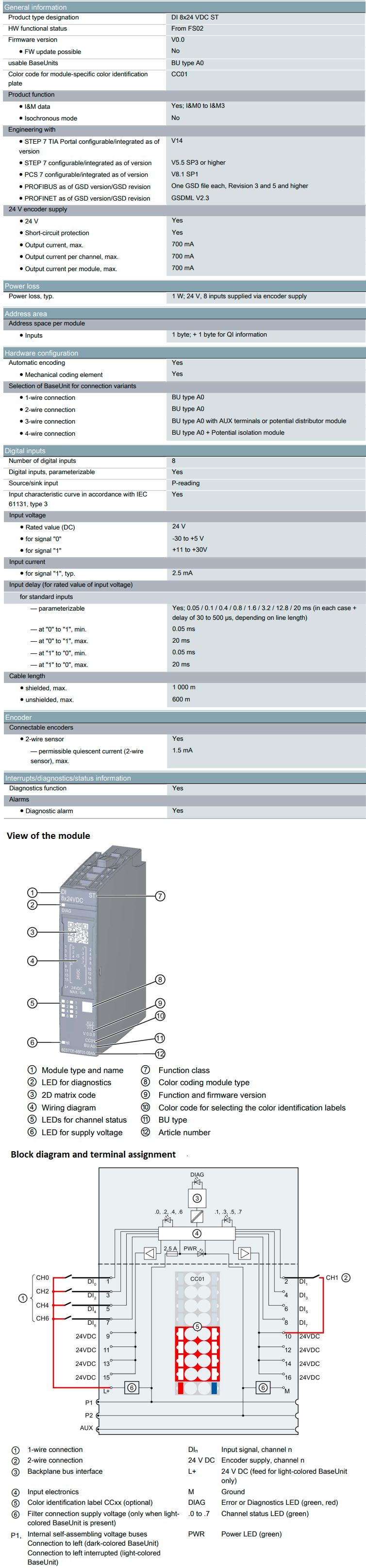

Siemens 6ES7131-6BF01-0BA0 is SIMATIC ET 200SP, Digital input module. SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input, (PNP, P-reading), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01, input delay time 0,05..20ms, module diagnostics for: short-circuit of sensor supply, wire break, supply voltage.

The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.

The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.

The module has the following technical properties:

● Digital input module with 8 inputs

● Supply voltage L+ , Sink input (PNP)

● Configurable input delay 0.05 ms to 20 ms (per channel)

● Configurable diagnostics (per module)

● Suitable for connection of switches and 2-wire sensors in accordance with IEC 61131, type 1 and 3
