SIMATIC ET 200SP, digital output module 6ES7132-6BF00-0CA0
The SIMATIC ET 200SPI/O system is a highly flexible, modular I/O system with IP20 protection.it can exchange IO data of the connected I/O modules with a higher-level control system.ET200SP components are available as SIPLUS version for extreme requirements and high degree of robustness. Via an interface module with PRODINET or PROFIBUS interface it can exchange IO data of the connected I/O modules with higher-level control system.

SIMATIC ET 200SP, digital output module, DQ 8x 24VDC/0.5A High Feature, source output PNP, source output, Packing unit: 1 unit, suitable for BU type A0, color code CC02, Channel diagnostics for: Short-circuit and wire break; supply voltage, channel fault LED
The module has the following technical properties:

● Digital output module with 8 outputs

● Source output (PNP, P-switching)

● Supply voltage L+

● Output current 0.5 A (per channel)

● Configurable diagnostics (per channel)

● Configurable substitute values (per channel)

● Suitable for solenoid valves, DC contactors, and indicator lights

● Safety-related shutdown

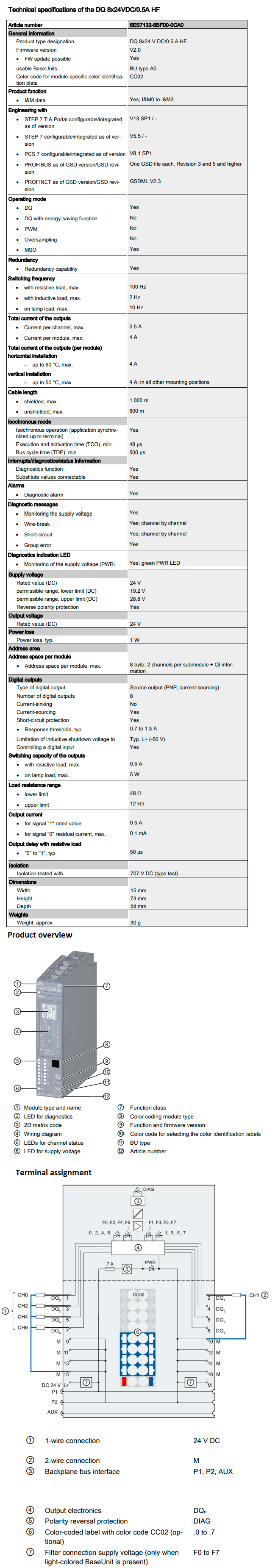

General Specifications
