SIMATIC ET 200SP, ANALOG INPUT MODULE 6ES7134-6GD01-0BA1
Siemens SIMATIC ET 200SP analogue input module

SIMATIC ET 200SP, ANALOG INPUT MODULE, AI 4XI 2-/4-WIRE STANDARD, PACKING UNIT: 1 PIECE, FITS TO BU-TYPE A0, A1, COLOR CODE CC03, MODULE DIAGNOSIS, 16BIT, +/-0,3%

Siemens SIMATIC ET-200Sp is an Analogue Input Module designed for use with the Simatic range of programmable logic controllers (PLCs). This module is an AI 4XI 2-4 wire ST type, fits BU type A0, A1 base units and has 4 analogue inputs and accepts a 24 VDC supply voltage. This analogue input module has been designed to monitor supply voltage, wire break, short circuits, group error, overflow and underflow.

The module belongs to a diverse range of modules available can be used for specific tasks for expansion of decentralised structures and enables inexpensive spare parts stocking. This generation of controls integrates the latest and future-proof technologies into your automation process control system. This analogue input module is suitable for a wide range of industrial and commercial applications.

SIMATIC ET-200SP Features and Benefits

Built in diagnostics and monitoring alarms

Monitors voltage, wire break, short circuits, overflow, underflow

Input ranges 0 to 20 mA, 16 bit, 4 mA to 20 mA 15 bit

Supply voltage – 24 VDC

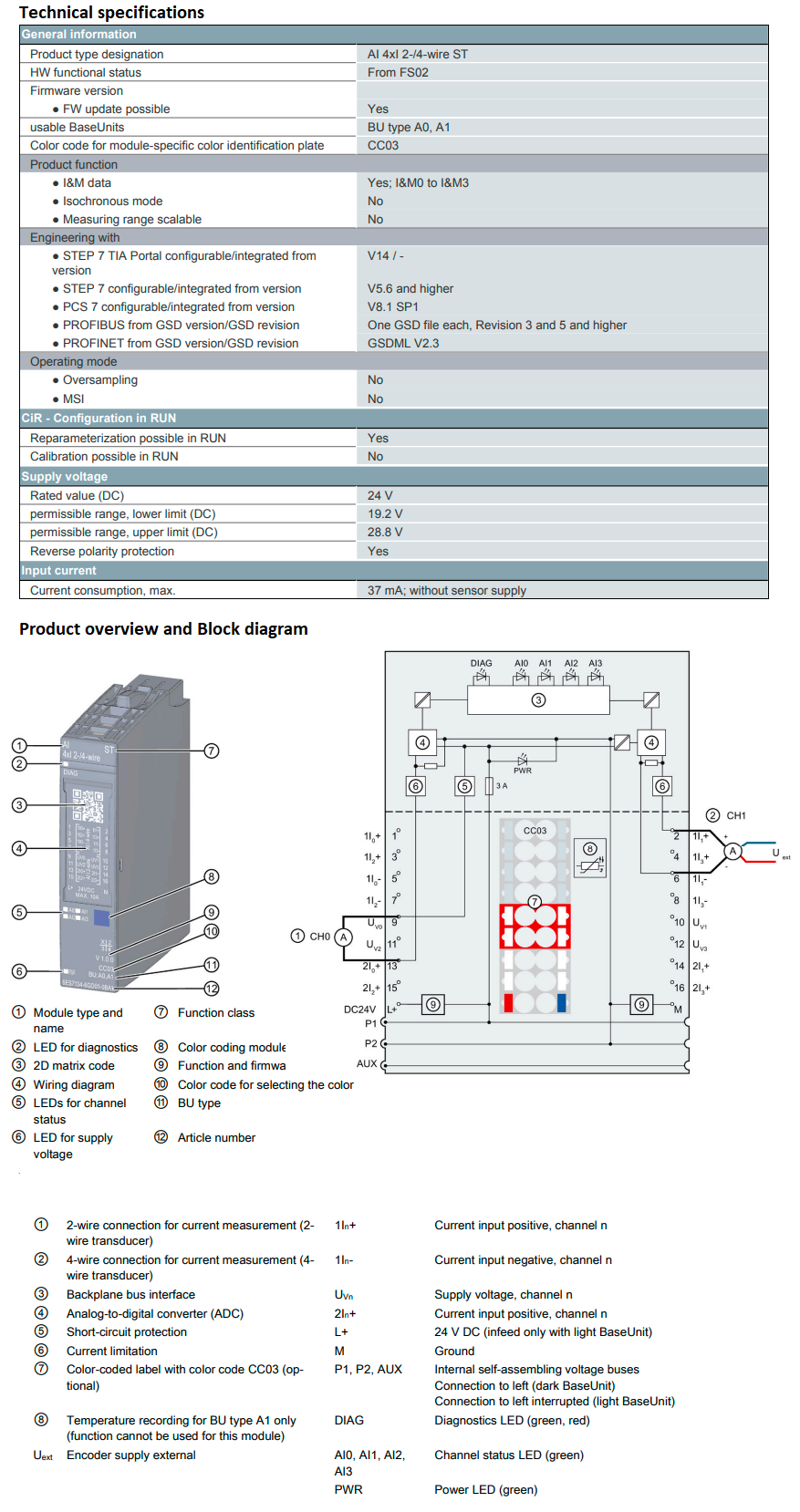

The module has the following technical properties:

● Analog input module with 4 inputs

● Current measuring type for 2- and 4-wire transducers adjustable per channel ● Input ranges – 4 to 20 mA, resolution 15 bits – 0 to 20 mA, resolution 15 bits – ±20 mA, resolution 16 bits including sign

● Electrically isolated from the supply voltage L+ (only for input type 4-wire transducer)

● Permitted common mode voltage: 10 VSS

● Configurable diagnostics per module
