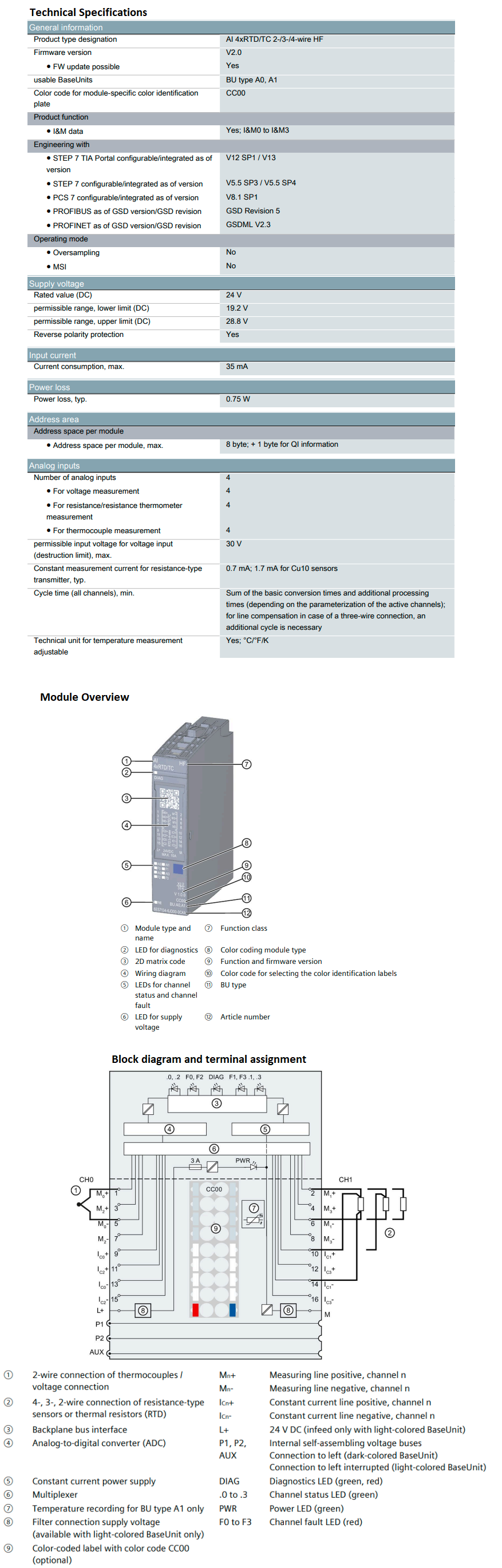

SIMATIC ET 200SP, Analog input module 6ES7134-6JD00-0CA1
Siemens 6ES7134-6JD00-0CA1 is SIMATIC ET 200SP, Analog input module. SIMATIC ET 200SP, Analog input module, AI 8xRTD/TC 2-wire High Feature suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%.

SEND/RECEIVE with and without RFC1006 multicast, PROFINET IO controller, DHCP, SNMP V2, web, diagnostics, initialization via LAN, access protection via IP access list integrated real-time switch ERTEC 400, 2xRJ45 connection for LAN with 10/100 Mbit/s.

The module has the following technical properties:

• Analog input module with 4 inputs

• 4 measurement types, can be set per channel – Thermal resistor (RTD) – Thermocouple (TC) – Resistor – Voltage

• Resolution: Up to 16 bits including sign – Can be extended to max. 3 decimal places via the scalable measuring range for the measuring types RTD and TC.

• Configurable diagnostics for each channel

• Hardware interrupt on limit violation can be set per channel (two high and two low limits per channel)

• Adjustable compensation – RTD: compensation of the line resistance for a 2-wire and 3-wire connection – TC: external or internal temperature compensation

• interference frequency suppression, adjustable
