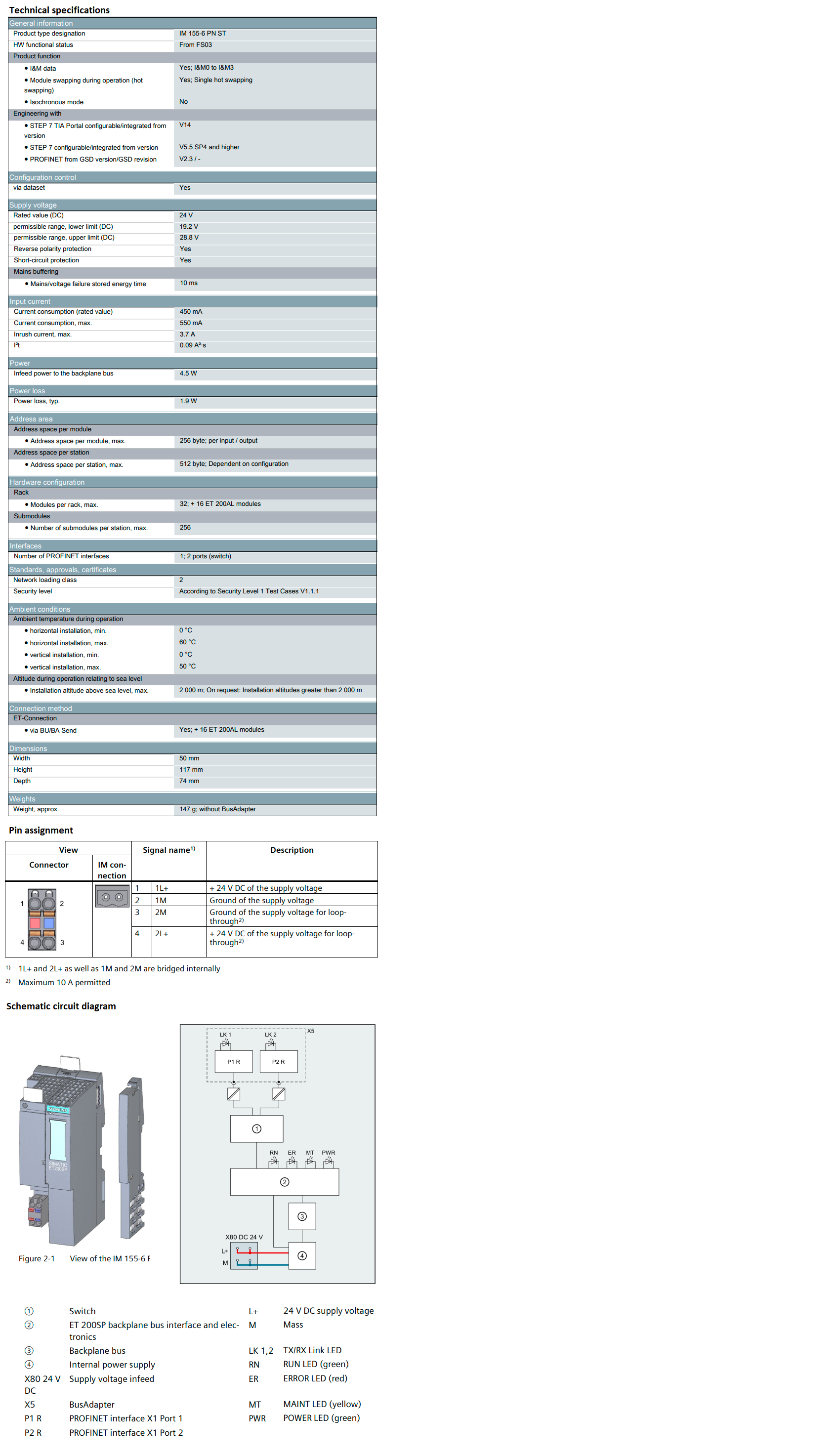

SIMATIC ET 200SP, PROFINET interface module 6ES7155-6AU01-0BN0
The Siemens 6ES7155-6AU01-0BN0 is an interface module with a hardware configuration of rack type and has a rated current consumption of 450 mA, while its maximum current consumption is 550 mA. The interface module also has a maximum inrush current of 3.7 A and a power loss of 1.9 W. It operates with a rated supply voltage of 24 V and supports up to 256 submodules per station. The interface types supported by this module are Profinet and RJ45, and it has two interface ports with a switch. The module comes with a BusAdapter of BA 2x RJ45, BA 2x FC and supports protocols such as Profinet I/O, Open IE Communication, and Media redundancy. The Open IE communication protocols supported by the module include TCP/IP, SNMP, and LLDP.

The product type of this device is called IM 155-6 PN ST, and it is currently in the functional status of FS03.

The device supports RJ45 (Ethernet) interface types for communication. It allows for PROFINET transmission with a speed of 100 Mbit/s full duplex (100BASE-TX) and also supports 10 Mbps for Ethernet services and 100 Mbps for PROFINET communication.

The device supports several protocols including PROFINET IO Device and Open IE communication. It also supports media redundancy with PROFINET MRP.

The Siemens 6ES7155-6AU01-0BN0 device can be connected via ET-Connection using BU/BA Send with up to 16 ET 200AL modules. The device has a width of 50mm, a height of 117mm, and a depth of 74mm. Its approximate weight is 147g, excluding the BusAdapter.
