SIMATIC S7-1200CPU 1214C - 6ES7214-1AG40-0XB0
Siemens 6ES7214-1AG40-0XB0 technical specifications, attributes, and parameters.

Siemens 6ES7 214-1AG40-0XB0 is now available new, surplus, and used.. SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/DC, ONBOARD I/O: 14 DI 24V DC; 10 DO 24 V DC; 2 AI 0 - 10V DC, POWER SUPPLY: DC 20.4 - 28.8 V DC, PROGRAM/DATA MEMORY: 100 KB. Plc Processor, 16-I/P, 10-O/P; No. Of Analog Inputs:2; No. Of Analog Outputs:-; No. Of Digital Inputs:14; No. Of Digital Outputs:10; Meter Display Type:-; Ip/Nema Rating:Ip20; Product Range: Simatic S7-1200

The SIMATIC S7-1200 compact CPU 1214C DC/DC/DC - 6ES7214-1AG40-0XB0 from Siemens has 14 digital inputs, 10 digital outputs and 2 analogue inputs. The supply voltage is 20.4-28.8 V DC. One PROFINET port is provided for communication and programming. Thanks to the 100 kB program and data memory the compact CPU 1214C DC/DC/DC - 6ES7214-1AG40-0XB0 is ideal for many control tasks in all industrial areas.

The 6ES7214-1AG40-0XB0 is a Central Process Unit with EEPROM memory, 100kb work and 4MB load integrated memories. It features maintenance-free present backup, PROFINET interface and interference immunity against high-frequency radiation accordance to IEC 61000-4-6 standard.
Specification
Power: 24VDC
Digital inputs: 14x 24VDC (3 can work as fast counters)
Digital outputs: 10x 24VDC outputs
Analog Inputs: 2x 0...10VDC (10 bit resolution)
Memory: 50kB
Utility program: Step 7 Basic (LAD, FBD)
Fast counters: max 3 (100kHz)
PID controller with auto tuning
Integrated Ethernet - PROFINET
Communication extensions: RS-232, RS-485
General technical parameters
Serial port: 1x RS-232/422/485

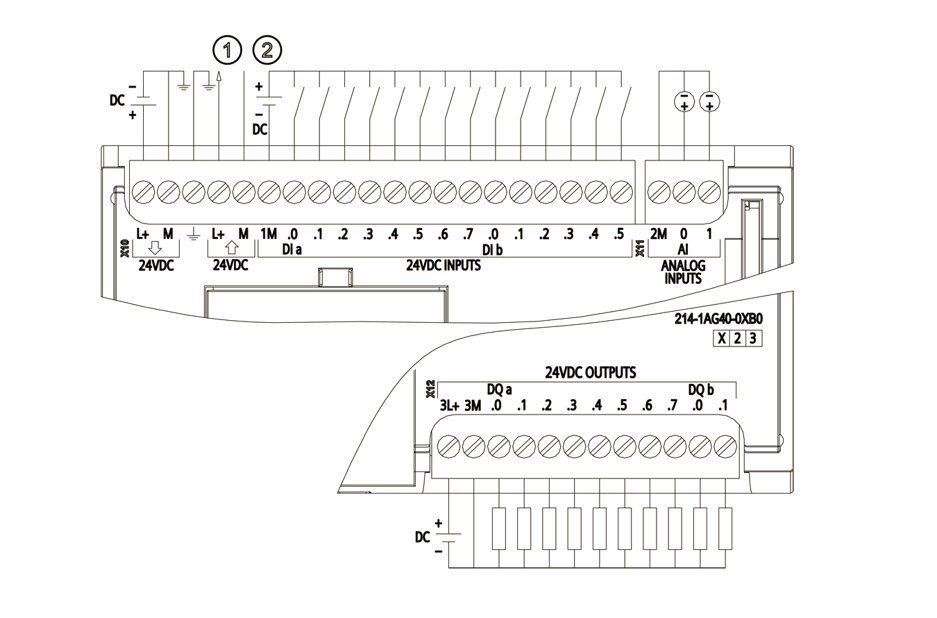

I/O: 14x digital inputs, 10x digital outputs, 2x analog inputs
