Siemens: SIMATIC S7-1200, CPU 1215C (6ES7215-1BG40-0XB0)

2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC, 2 AO 0-20 mA DC, Power supply: AC 85-264 V AC at 47-63 Hz, Program/data memory 125 KB

Price : $965.34

Quantity in Stock:11

Availability: Usually Ships in 3 to 5 Business Days
Order #: 6ES7215-1BG40-0XB0

Qty:

Description

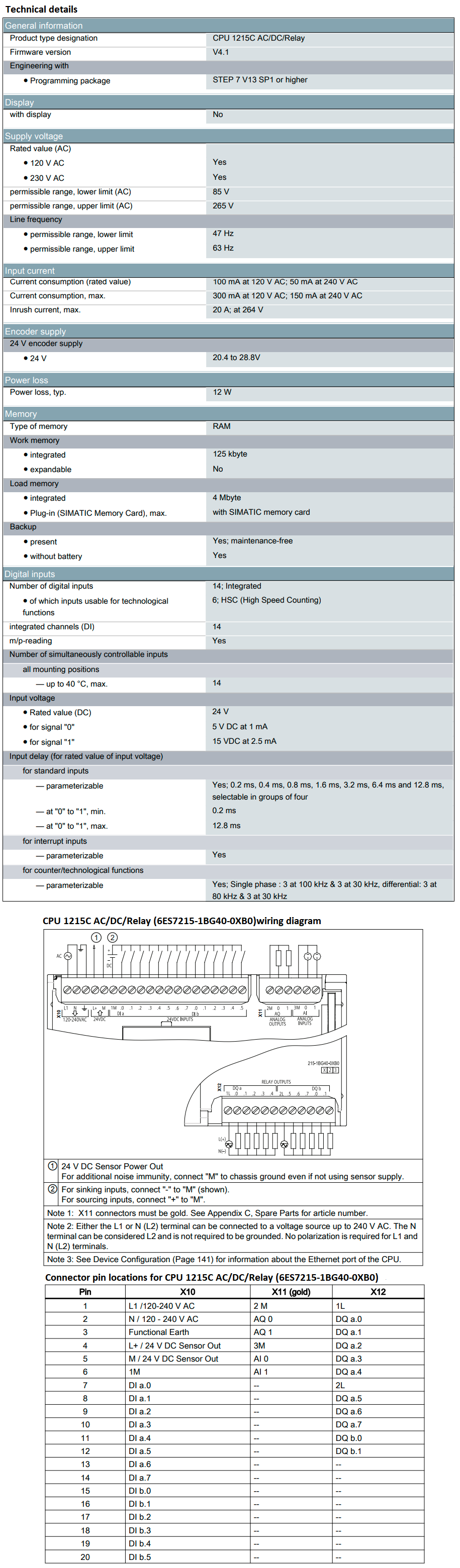

Specifications and Drawings

SIMATIC S7-1200, CPU 1215C (6ES7215-1BG40-0XB0)
SIMATIC S7-1200, CPU 1215C, compact CPU, AC/DC/relay, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC, 2 AO 0-20 mA DC, Power supply: AC 85-264 V AC at 47-63 Hz, Program/data memory 125 KB

The SIMATIC S7-1200 compact CPU 1215C AC/DC/RELAY - 6ES72151BG400XB0 from Siemens has 14 digital inputs, 10 digital outputs as relays, 2 analog inputs, and 2 analog outputs. The supply voltage is 85-264 V AC. For the communication and programming, 2 PROFINET ports are available for use. Thanks to the 125 kB programming and data memory, the compact CPU 1215C AC/DC/RELAY - 6ES72151BG400XB0 is ideal for many control tasks in all industrial areas.

General Specifications

Product type designation	CPU 1215C AC/DC/relay
Firmware version	V4.5
Current consumption (rated value)	100 mA at 120 V AC; 50 mA at 240 V AC
Current consumption, max	300 mA at 120 V AC; 150 mA at 240 V AC
Inrush current, max.	20 A; at 264 V
for backplane bus (5 V DC), max.	1 600 mA; Max. 5 V DC for SM and CM
Work memory ● integrated	125 kbyte
Number of digital inputs	14; Integrated
Number of digital outputs	10; Relays
Number of relay outputs	10
Number of analog inputs	2
Number of analog outputs	2
Connectable encoders ● 2-wire sensor	Yes
Interface types ● RJ 45 (Ethernet)	Yes
IP degree of protection	IP20
Weight, approx.	550g
