Siemens: SIMATIC S7-1200, Digital I/O SB 1223(6ES7223-0BD30-0XB0)
Siemens: SIMATIC S7-1200, Digital I/O SB 1223(6ES7223-0BD30-0XB0)


SIMATIC S7-1200, Digital I/O SB 1223, 2 DI/2 DO, 2 DI 24 V DC/2 DO 24 V DC
Price : $134.55

Quantity in Stock:191

Availability: Usually Ships in 3 to 5 Business Days
Order #: 6ES7223-0BD30-0XB0
Qty:

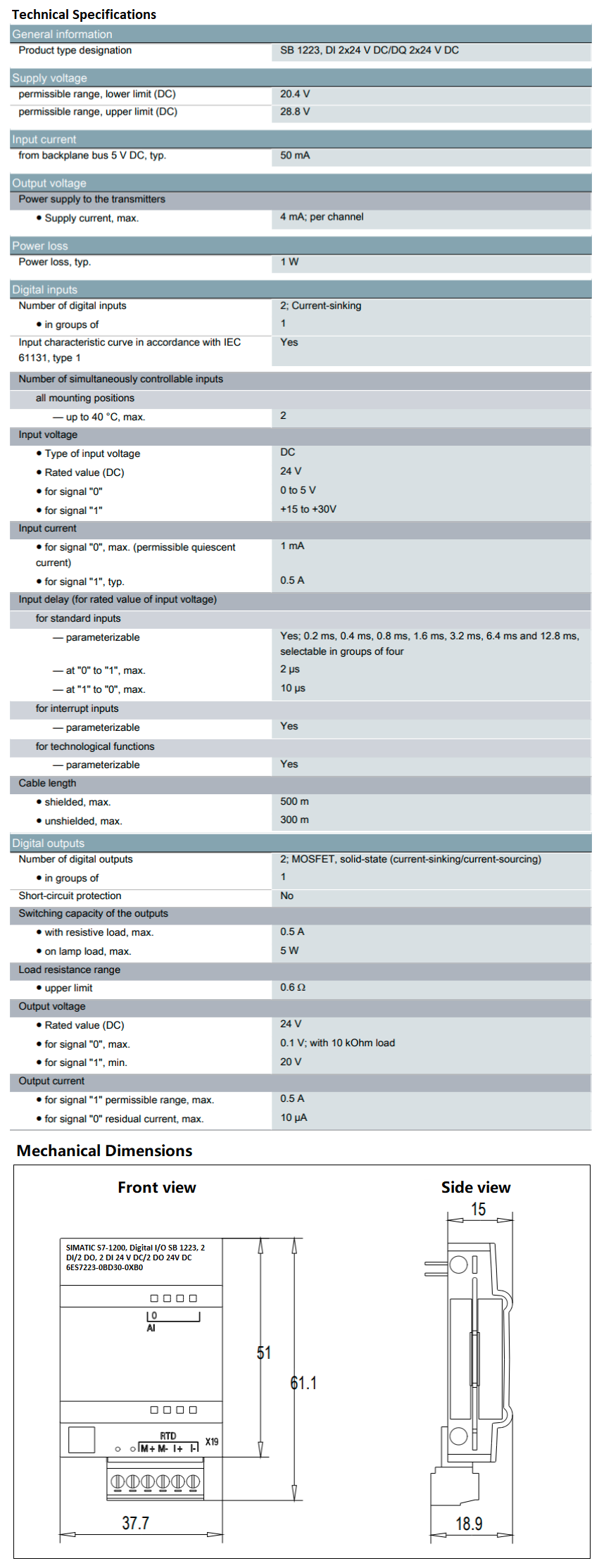

Description Specifications and Drawings


SIMATIC S7-1200, Digital I/O SB 1223(6ES7223-0BD30-0XB0)
The SIMATIC S7-1200 Signal Board SB 1223 - 6ES72230BD300XB0 from Siemens offers a cost-effective expansion of your Siemens S7-1200, With 2 24 V DC digital inputs and 2 digital outputs without additional space requirements. The signal board SB 1223 - 6ES72230BD300XB0 is simply plugged into the front of the CPU.

General Specifications

Amperage Rating

0.5

Dimensions

62 mm H x 38 mm W x 21 mm D

Number of Inputs

2

Number of Outputs

2

Series

S7-1200 SB 1223

Temperature Rating

-20 to 50 deg C Vertical, -20 to 60 deg C Horizontal

Voltage Rating

24

Support Links
6ES72230BD300-Catalogue
