WAGO: 8-channel digital output; 24 VDC; 0.5 A (753-530)

This digital output module features eight channels in a width of just 12 mm (0.47 inch).The module transmits control signals from an automation device to connected actuators.

The 750-530 is a 8-channel digital output DC Module provide 8-channels maintaining a width of only 12mm. The connected load is switched via the digital output from the control system. Each output of this 24V Dc module is electrically isolated from the bus by use of optocouplers.

Features:

All outputs are electronically short-circuit-protected
Field and system levels are electrically isolated.
High-side switching
Resistive, inductive and lamps type of load
8-bit Internal bit width
500V System/supply isolation
CAGE CLAMP® Wire connection
Applications:
Automation & Process Control

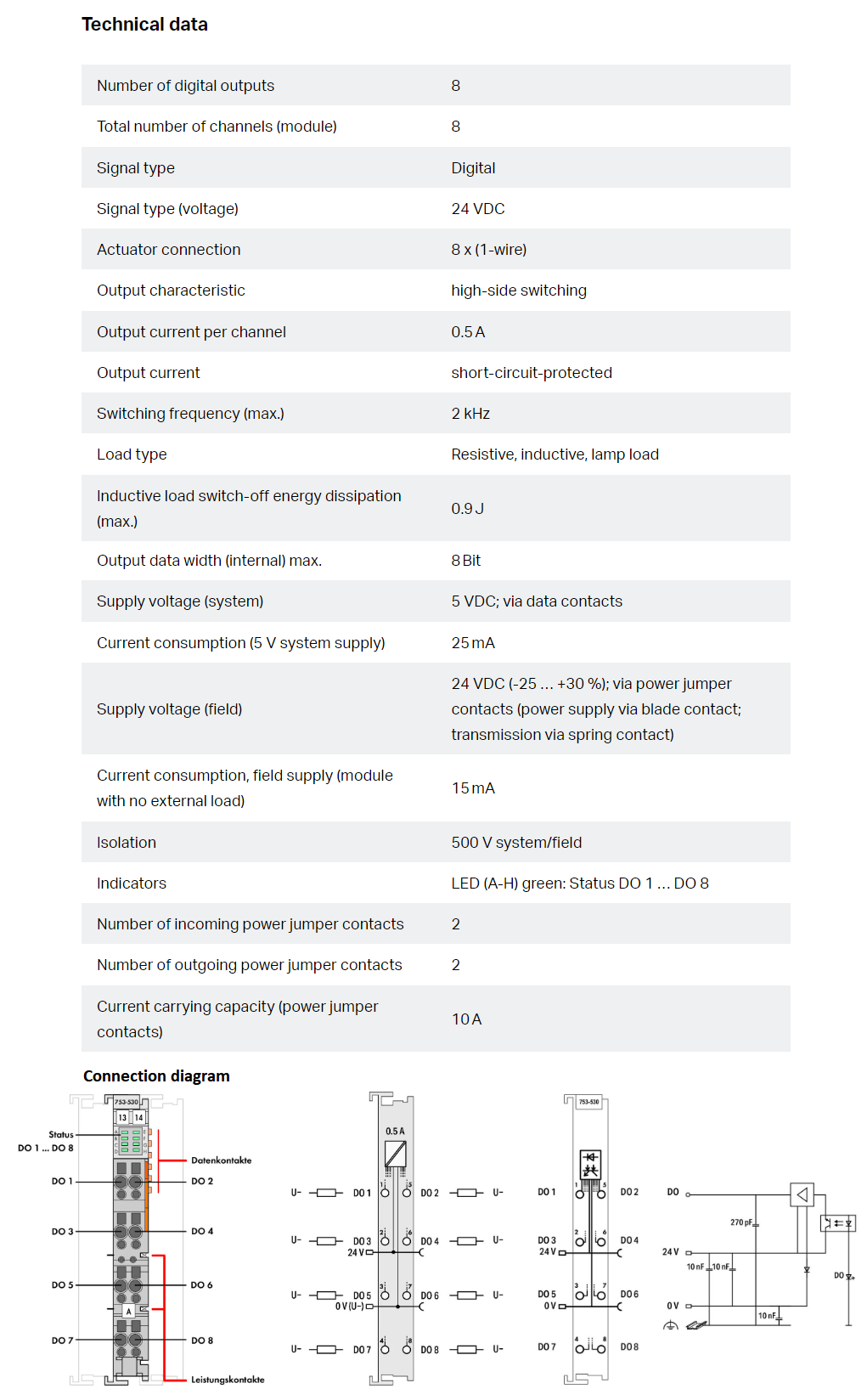

General Specifications:
