GLENTEK:GM4000 series DC brush servo motors GM40X-X-XXXXXXXX-

To accommodate your complete servo system requirements, Glentek manufactures two complete series (GM and GMR) of high performance, permanent magnet DC brush servo motors.
Following is a general description of each series:
GM SERIES
The GM series utilize traditional ferrite magnets, which are ideal for cost sensitive applications. In addition, the higher inertia armatures provide improved motor to load inertia matching for medium to high inertia loads. This helps to reduce the mechanical shaft resonance, which allows higher servo gains with increased stability. All frame sizes incorporate skewed armatures, which provide ultra smooth operation (i.e. low cogging torque) at all speeds.
• Continuous Torque Range:1.9 Lb-in (0.21 Nm) to 113 Lb-in (12.8 Nm)
• Peak Torque Range:12.0 Lb-in (1.4 Nm) to 338 Lb-in (38.1 Nm)
GMR SERIES
The GMR series utilize high-energy Neodymium-Iron-Boron (NdFeB) magnets, which provide more torque in a smaller package with higher dynamic performance than traditional ferrite magnet designs. Due to the high torque to inertia ratio of these motors, they are ideal for applications which require high acceleration and deceleration characteristics or where the physical size of the motor is a major concern.
• Continuous Torque Range:16.0 Lb-in (1.81 Nm) to 65.0 Lb-in (7.34 Nm)
• Peak Torque Range:80.0 Lb-in (9.04 Nm) to 325.0 Lb-in (36.72 Nm)
GM SERIES
GM series DC brush servo motors utilize traditional ferrite magnets, which are ideal for cost sensitive applications. In addition, the higher inertia armatures provide improved motor to load inertia matching for medium to high inertia loads. This helps to reduce the mechanical shaft resonance, which allows higher servo gains with increased stability. All frame sizes incorporate skewed armatures, which provide ultra smooth operation (i.e. low cogging torque) at all speeds.
Glentek’s DC brush servo motor line features high performance, skewed armatures, and TENV construction. Industry standard mounting, feedback, sealing, and lead termination options available, along with optional fail safe brakes.

Glentek’s GM series of high performance, permanent magnet DC brush servo motors utilize traditional ferrite magnets, which are ideal for cost sensitive applications. In addition, the higher inertia armatures provide improved motor to load inertia matching for medium to high inertia loads.

GM4000 SERIES
Glentek’s GM4000 series of high performance, permanent magnet DC brush servo motors utilize traditional ferrite magnets, which are ideal for cost sensitive applications. In addition, the higher inertia armatures provide improved motor to load inertia matching for medium to high inertia loads. This helps to reduce the mechanical shaft resonance, which allows higher servo gains with increased stability. These motors incorporate skewed armatures, which provide ultra smooth operation (i.e.low cogging torque) at all speeds.
• Continuous Torque Range: 13.0 Lb-in (1.47 Nm) to 51.2 Lb-in (5.78 Nm)
• Peak Torque Range: 65.0 Lb-in (7.35 Nm) to 256.0 Lb-in (28.9 Nm)

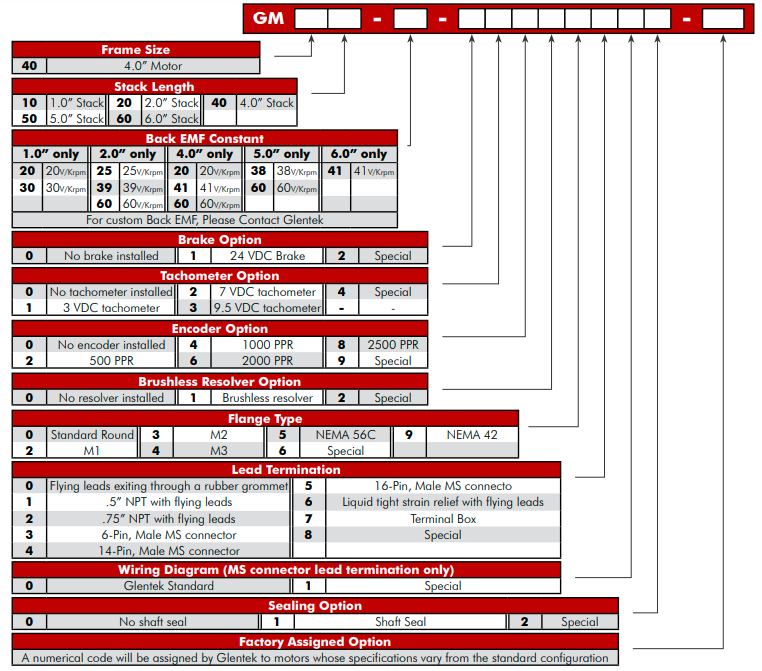

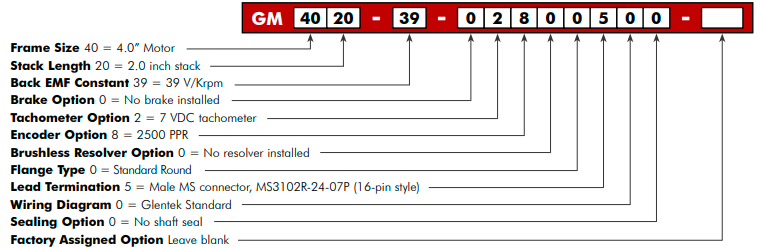

GM4000 SERIES SELECTION TABLE
