GLENTEK : GMB3500 SERIES DC BRUSHLESS SERVO MOTORS GMB35X-X-X-XXXXXXXX-X

Glentek GMB3500 series DC brushless servo motor GMB35X-X-X-XXXXXXXX-X

Alternate View

Request for quantity, price, delivery and model information

Continuous Torque Range: 16 Lb-in (1.81 Nm) to 39.0 Lb-in (4.41 Nm)
Peak Torque Range: 48.0 Lb-in (5.43 Nm) to 117.0.0 Lb-in (13.23 Nm)
24 VDC holding brake. Storage Temperature: -20°C to 70°C

Availability: Lead time 10 - 12 weeks

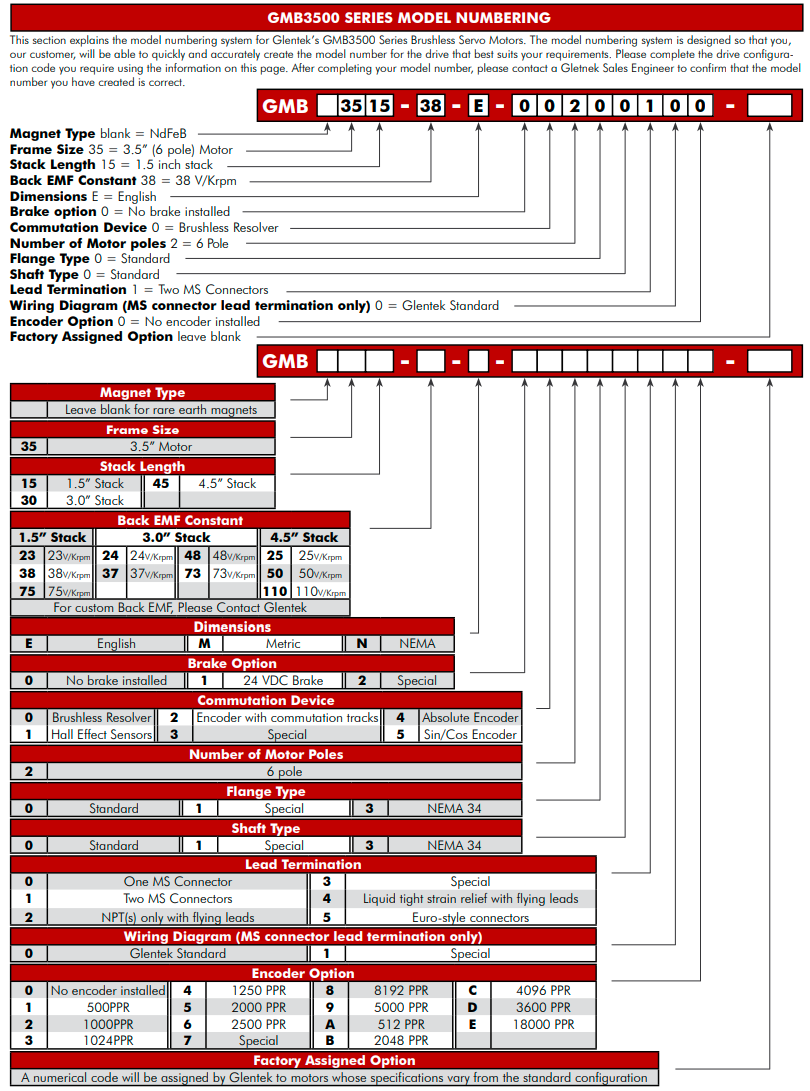

Order #: GMB35X-X-X-XXXXXXXX-X

Model Number/Code*:
Dimensions*:
Brake Option*:
Commutation Device*:
No of Poles*:
Flange Type.*:
Shaft Type*:
Lead Termination*:
Wiring Diagram*:
Encoder Option*:

Description

Ordering Information

Specifications and Drawings

GLENTEK:GMB3500 series DC brushless servo motors GMB35X-X-X-XXXXXXXX-X
The GMB series utilizes high-energy Neodymium-Iron-Boron (NdFeB) magnets which when combined with low inertia rotors, provide high dynamic performance. Due to the high torque to inertia ratio of these motors, they are ideal for applications which require high acceleration and deceleration characteristics. In addition, all frame sizes incorporate skewed stators which provide ultra smooth operation (i.e. low cogging torque) at all speeds. They range in continuous torques from 2.8 lbin (0.32 Nm) to 1,092 lb-in (123.4 Nm) and peak torques from 8.4 lb-in. (0.95 Nm) to 3,276 lb-in. (370.2 Nm). Typical applications include factory automation machinery, fitness equipment (i.e. treadmills), labeling machinery, machine tools, material handling machinery, medical equipment (i.e. CAT scanners and PET scanners), packaging machinery, printing machinery, robotics, semiconductor machinery, surface mount pick and place machines, x-y tables, textile machinery, applications which have low to medium reflected load inertias and require a high dynamic response, applications which require smooth operation and/or applications which require a lot of torque in a small mechanical form factor.

Glentek’s GMB3500 series of high performance, permanent magnet Brushless servo motors utilize high-energy Neodymium-Iron- Boron (NdFeB) magnets, which provide more torque in a smaller package with higher dynamic performance than traditional ferrite magnet designs. In addition, due to high torque to inertia ratio of these motors, they are ideal for applications which require high acceleration and deceleration characteristics or where the physical size of the motor is a major concern.
• Continuous Torque Range: 16 Lb-in (1.81 Nm) to 39.0 Lb-in (4.41 Nm)
• Peak Torque Range: 48.0 Lb-in (5.43 Nm) to 117.0.0 Lb-in (13.23 Nm)

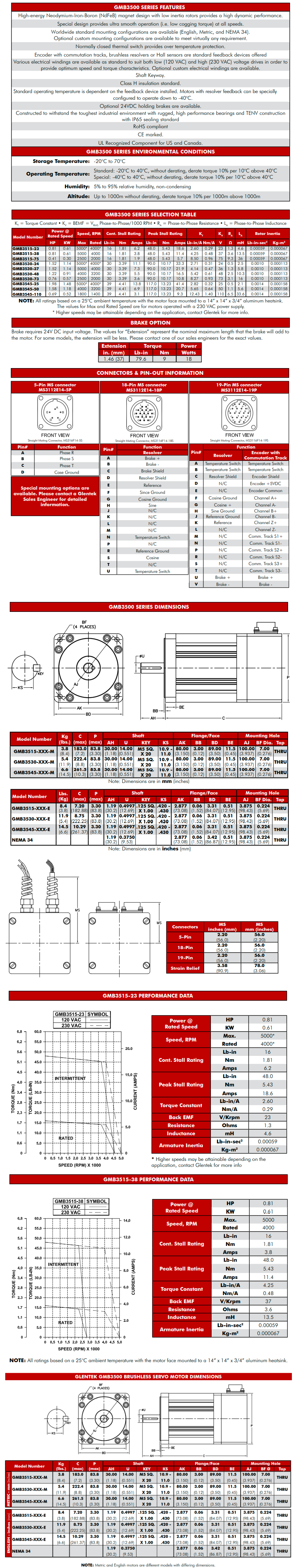

Glentek’s GMB3500 Series motors specifications & selection table.

MODEL NUMBER	POWER @ RATED SPEED		RPM	CONT. STALL RATING			PEAK STALL RATING
MODEL NUMBER	HP	KW	MAX	LB-IN	NM	AMPS	LB-IN	NM	AMPS
GMB3515-38	0.81	0.61	5000	16	1.8	3.8	48	5.43	11.4
GMB3515-75	0.41	0.3	2500	16	1.8	1.9	48	5.43	5.7
GMB3530-24	1.52	1.14	5000	30	3.4	11.1	90	10.17	33.3
GMB3530-37	1.52	1.14	5000	30	3.4	7.3	90	10.17	21.9
GMB3530-48	1.22	0.91	4000	30	3.4	5.5	90	10.17	16.5
GMB3530-73	0.76	0.57	2500	30	3.4	3.6	90	10.17	10.8
GMB3545-25	1.98	1.48	5000	39	4.4	13.8	117	13.23	41.4
GMB3545-50	1.58	1.18	4000	39	4.4	6.9	117	13.23	20.7
GMB3545-110	0.69	0.52	1800	39	4.4	3.1	117	13.23	9.3
GMB3515-23	0.81	0.61	5000	16	1.8	6.2	48	5.43	18.6

Model No.: GMB2005-17, GMB2005-8, GMB2010-17, GMB2010-28, GMB2010-8, GMB2015-17, GMB2015-8, GMB2020-17, GMB2020-28, GMB2020-8, GMB3515-23, GMB3515-38, GMB3515-75, GMB3530-24, GMB3530-37, GMB3530-48, GMB3530-73, GMB3545-110, GMB3545-25, GMB3545-50, GMB3545-55, GMB4525-110, GMB4525-34, GMB4525-55, GMB4550-110, GMB4550-37, GMB4550-55, GMB4550-74, GMB4560-50, GMB4560-90, GMB4575-110, GMB4575-35, GMB4575-55, GMB4575-70, GMB56108-115, GMB56108-93, GMB5627-115, GMB5627-34, GMB5627-70, GMB5654-115, GMB5654-33, GMB5654-70, GMB5681-115, GMB5681-70, GMB75120-158, GMB75120-79, GMB7530-158, GMB7530-79, GMB7560-158, GMB7560-79, GMB7590-158, GMB7590-79
