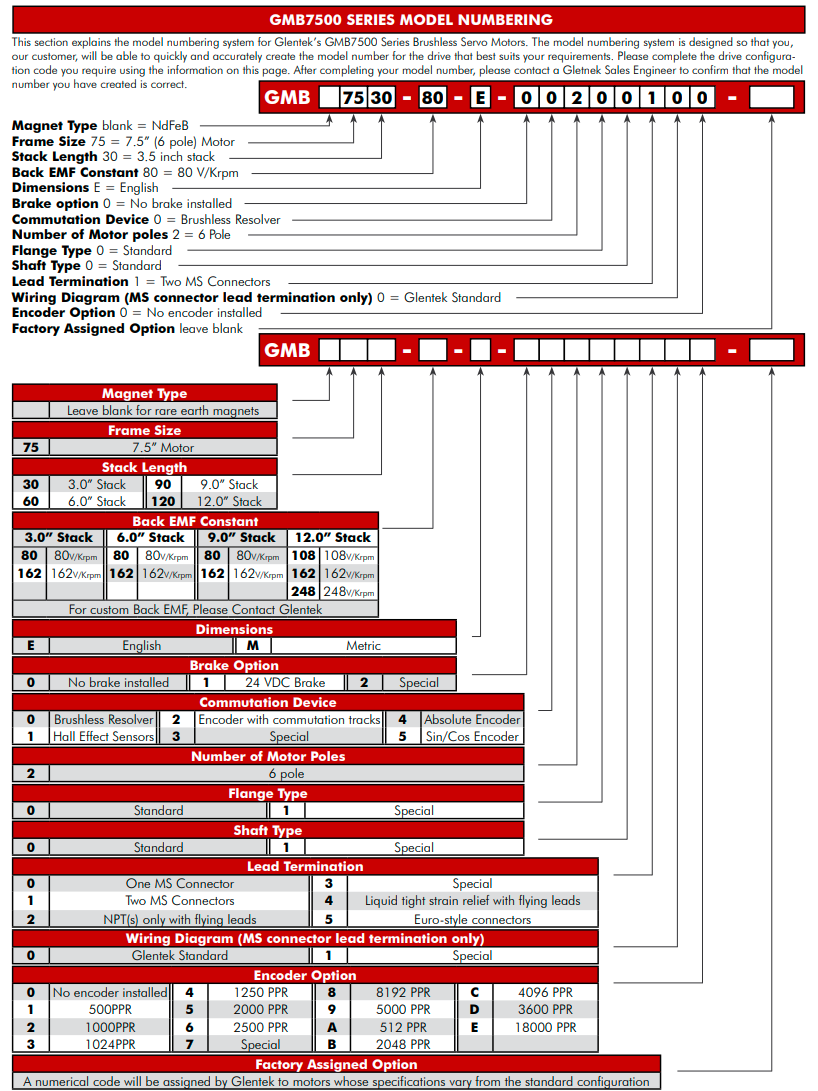

GLENTEK:GMB7500 series DC brushless servo motors GMB75X-X-X-XXXXXXXX-X
The GMB series utilizes high-energy Neodymium-Iron-Boron (NdFeB) magnets which when combined with low inertia rotors, provide high dynamic performance. Due to the high torque to inertia ratio of these motors, they are ideal for applications which require high acceleration and deceleration characteristics. In addition, all frame sizes incorporate skewed stators which provide ultra smooth operation (i.e. low cogging torque) at all speeds. They range in continuous torques from 2.8 lbin (0.32 Nm) to 1,092 lb-in (123.4 Nm) and peak torques from 8.4 lb-in. (0.95 Nm) to 3,276 lb-in. (370.2 Nm). Typical applications include factory automation machinery, fitness equipment (i.e. treadmills), labeling machinery, machine tools, material handling machinery, medical equipment (i.e. CAT scanners and PET scanners), packaging machinery, printing machinery, robotics, semiconductor machinery, surface mount pick and place machines, x-y tables, textile machinery, applications which have low to medium reflected load inertias and require a high dynamic response, applications which require smooth operation and/or applications which require a lot of torque in a small mechanical form factor.

Glentek’s GMB7500 series of high performance, permanent magnet Brushless servo motors utilize high-energy Neodymium-Iron- Boron (NdFeB) magnets, which provide more torque in a smaller package with higher dynamic performance than traditional ferrite magnet designs. In addition, due to high torque to inertia ratio of these motors, they are ideal for applications which require high acceleration and deceleration characteristics or where the physical size of the motor is a major concern.
• Continuous Torque Range: 400 Lb-in (45.2 Nm) to 1092 Lb-in (123.4 Nm)
• Peak Torque Range: 1200 Lb-in (135.6 Nm) to 3276 Lb-in (370.2 Nm)

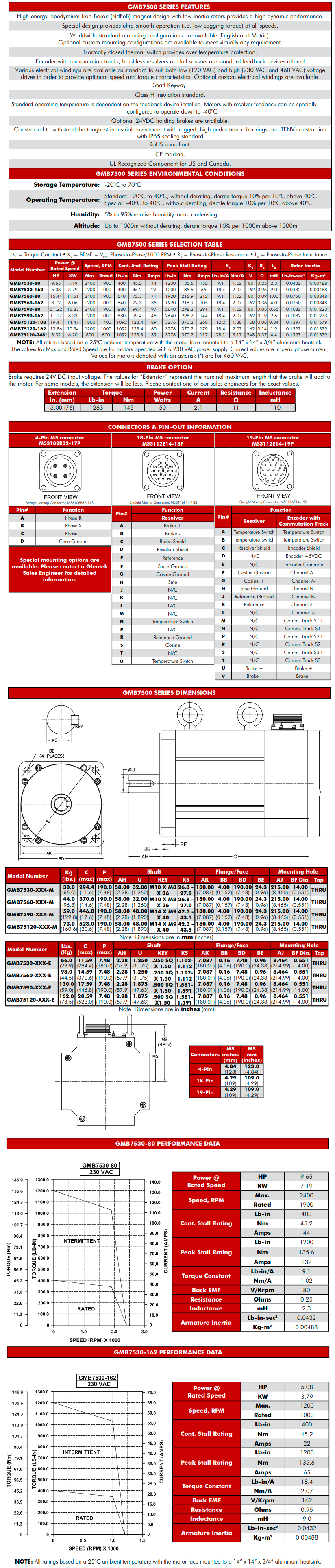

GMB7500 Series Servo Motor Specifications & Selection Table

Model No.: GMB2005-17, GMB2005-8, GMB2010-17, GMB2010-28, GMB2010-8, GMB2015-17, GMB2015-8, GMB2020-17, GMB2020-28, GMB2020-8, GMB3515-23, GMB3515-38, GMB3515-75, GMB3530-24, GMB3530-37, GMB3530-48, GMB3530-73, GMB3545-110, GMB3545-25, GMB3545-50, GMB3545-55, GMB4525-110, GMB4525-34, GMB4525-55, GMB4550-110, GMB4550-37, GMB4550-55, GMB4550-74, GMB4560-50, GMB4560-90, GMB4575-110, GMB4575-35, GMB4575-55, GMB4575-70, GMB56108-115, GMB56108-93, GMB5627-115, GMB5627-34, GMB5627-70, GMB5654-115, GMB5654-33, GMB5654-70, GMB5681-115, GMB5681-70, GMB75120-158, GMB75120-79, GMB7530-158, GMB7530-79, GMB7560-158, GMB7560-79, GMB7590-158, GMB7590-79
