GLENTEK : GMBF4300 SERIES DC BRUSHLESS SERVO MOTORS GMBF43X-X-X-XXXXXXXX-X

Glentek GMBF4300 series DC brushless servo motor GMBF43X-X-X-XXXXXXXX-X

Alternate View

Request for quantity, price, delivery and model information

Continuous Torque Range: 13.0 Lb-in (1.47 Nm) to 51.2 Lb-in (5.78 Nm) Peak Torque Range: 65.0 Lb-in (7.35 Nm) to 256.0 Lb-in (28.9 Nm), 24 VDC holding brake. Storage Temperature: -20°C to 70°C

Availability: Lead time 10 - 12 weeks
Order #: GMBF43X-X-X-XXXXXXXX-X

Model Number/Code*:
Dimensions*:
Brake Option*:
Commutation Device*:
No of Poles*:
Flange Type.*:
Shaft Type*:
Lead Termination*:
Wiring Diagram*:
Encoder Option*:

Description

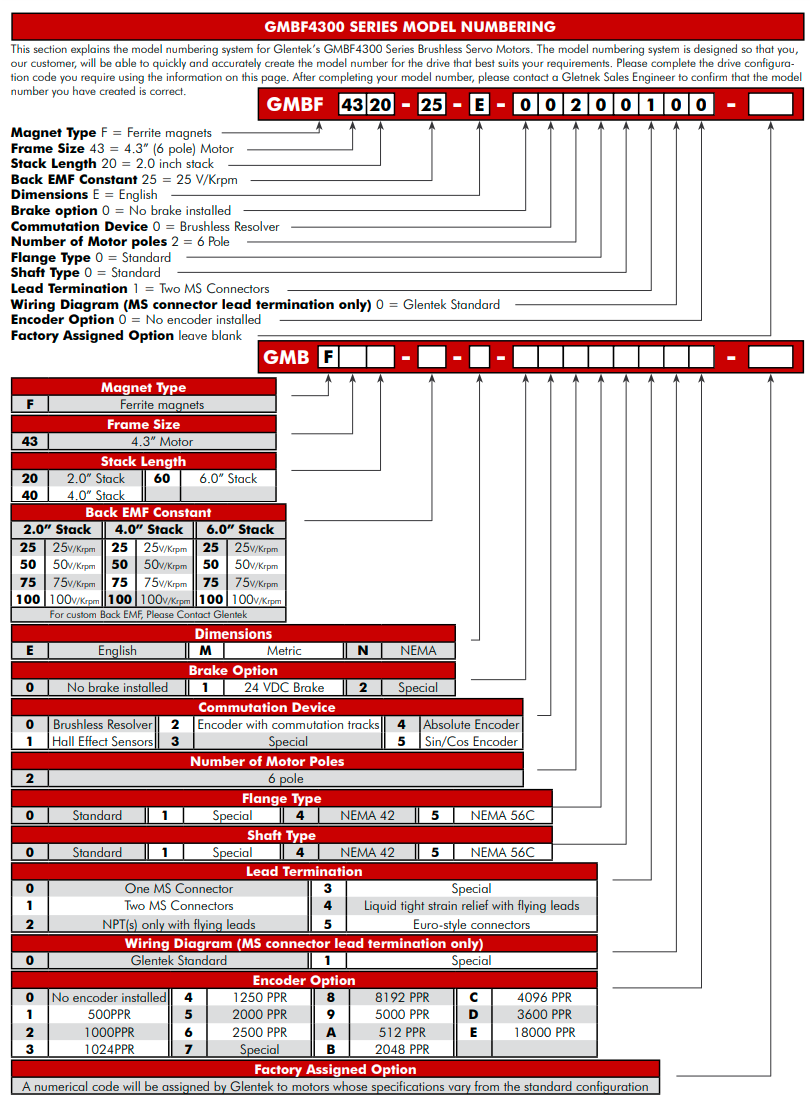

Ordering Information

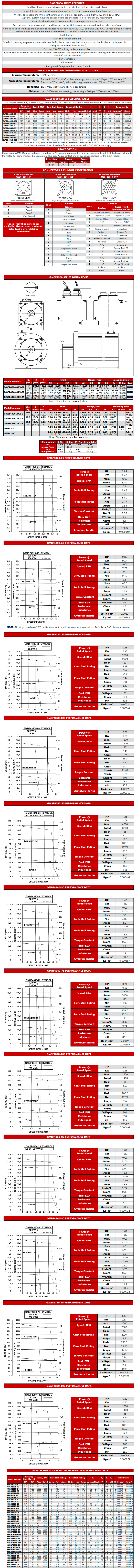

Specifications and Drawings

GLENTEK: GMBF4300 series DC brushless servo motors GMBF43X-X-X-XXXXXXXX-X
Glentek’s brushless servo motor line features high performance, skewed stators, and TENV construction. Industry standard mounting, feedback, sealing, and lead termination options available, along with optional fail safe brakes.

GMBF series brushless servo motors utilize traditional ferrite magnets which are ideal for cost sensitive applications. In addition, the higher inertia rotors provide improved motor to load inertia matching for medium to high inertia loads. This helps to reduce the mechanical shaft resonance which allows higher servo gains with increased stability. In addition, all frame sizes incorporate skewed stators which provide ultra smooth operation (i.e. low cogging torque) at all speeds. Motors are available in industry standard English, Metric and NEMA mounting configurations.
Continuous Torque Range: 22.0 Lb-in (2.49 Nm) to 75.0 Lb-in (8.47 Nm)
Peak Torque Range: 66.0 Lb-in (7.46 Nm) to 225.0 Lb-in (25.42 Nm)
Standard Features
Traditional ferrite magnet design, which are ideal for cost sensitive applications. In addition, the higher inertia rotors provide improved motor to load inertia matching for medium to high inertia loads.
Special design provides ultra smooth operation (i.e. low cogging torque) at all speeds.
Constructed to withstand the toughest industrial environment with rugged, high
performance bearings and TENV construction with IP65 sealing.
Normally closed thermal switch provides over temperature protection.
Various electrical windings are available as standard to suit both low (120 VAC) and high (230 VAC) voltage drives in order to provide optimum speed and torque characteristics.
Worldwide standard mounting configurations (i.e. English, Metric, and NEMA).
Encoder with commutation tracks, brushless resolvers, or Hall sensors are the standard
feedback devices offered.
Shaft keyway.
Class H insulation.
UL Recognized Component for the US and Canada.
CE marked.
RoHS compliant.
GMBF 4300Series Specification & Selection Table

MODEL NUMBER	POWER @ RATED SPEED		RPM	CONT. STALL RATING			PEAK STALL RATING
MODEL NUMBER	HP	KW	MAX	LB-IN	NM	AMPS	LB-IN	NM	AMPS
GMBF4320-25	0.89	0.67	4000	22	2.5	7.5	66	7.47	22.5
GMBF4320-50	0.89	0.67	4000	22	2.5	3.8	66	7.47	11.4
GMBF4320-75	0.56	0.42	2500	22	2.5	2.6	66	7.47	7.8
GMBF4320-100	0.39	0.29	1800	22	2.5	1.9	66	7.47	5.7
GMBF4340-25	1.46	1.09	4000	36	4.1	12.3	108	12.21	36.9
GMBF4340-50	1.46	1.09	4000	36	4.1	6.2	108	12.21	18.6
GMBF4340-75	0.91	0.68	2500	36	4.1	4.2	108	12.21	12.6
GMBF4340-100	0.64	0.48	1800	36	4.1	3.2	108	12.21	9.6
GMBF4360-25	1.87	1.39	4000	46	5.2	16.1	138	15.6	48.3
GMBF4360-50	1.87	1.39	4000	46	5.2	8	138	15.6	24
GMBF4360-75	1.17	0.87	2500	46	5.2	5.5	138	15.6	16.5
GMBF4360-100	0.82	0.61	1800	46	5.2	4.1	138	15.6	12.3
