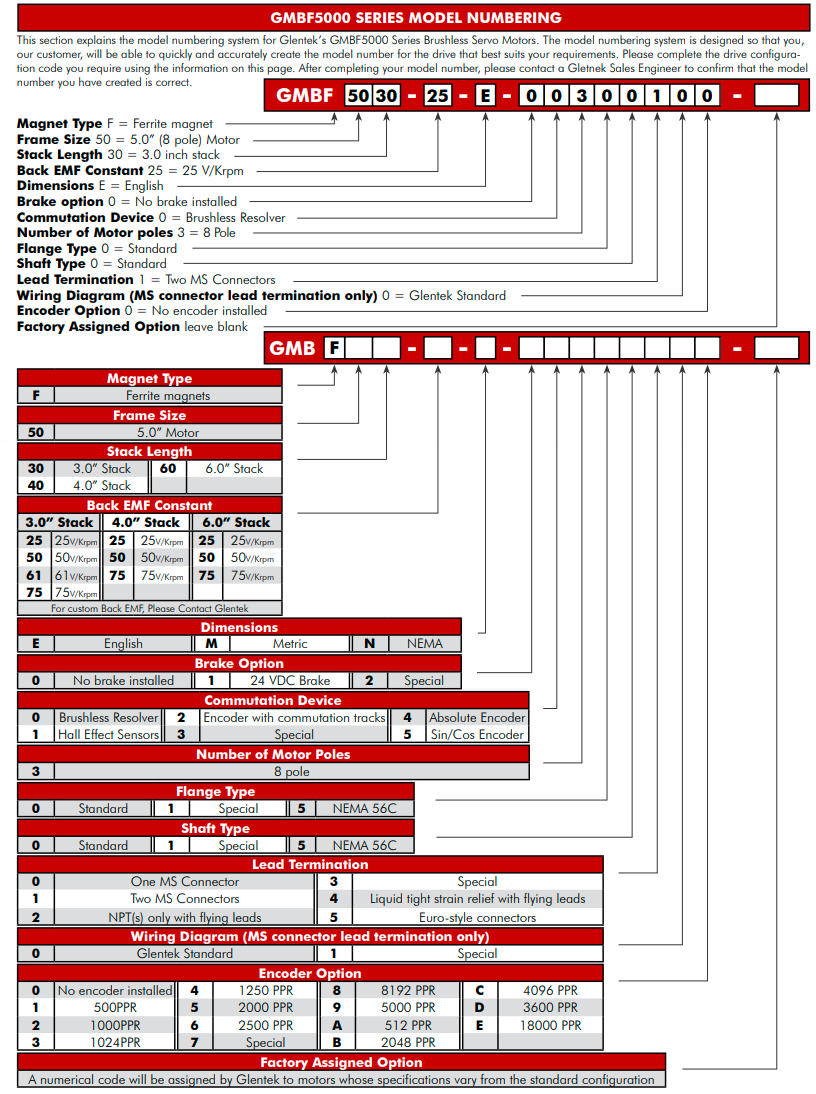

GLENTEK:GMBF5000 series DC brushless servo motors GMBF50X-X-X-XXXXXXXX-X
Glentek’s brushless servo motor line features high performance, skewed stators, and TENV construction. Industry standard mounting, feedback, sealing, and lead termination options available, along with optional fail safe brakes.
Glentek’s GMBF5000 series of high performance, permanent magnet Brushless servo motors utilize traditional ferrite magnets which are ideal for cost sensitive applications. This helps to reduce the mechanical shaft resonance which allows higher servo gains with increased stability. In addition, all frame sizes incorporate skewed stators which provide ultra smooth operation (i.e. low cogging torque) at all speeds. Motors are available in industry standard English, Metric and NEMA mounting configurations.
• Continuous Torque Range: 32.6 Lb-in (3.68 Nm) to 75.0 Lb-in (8.47 Nm)
• Peak Torque Range: 97.8 Lb-in (11.04 Nm) to 225.0 Lb-in (25.41 Nm)

Standard Features
Traditional ferrite magnet design, which are ideal for cost sensitive applications. In addition, the higher inertia rotors provide improved motor to load inertia matching for medium to high inertia loads.
Special design provides ultra smooth operation (i.e. low cogging torque) at all speeds.
Constructed to withstand the toughest industrial environment with rugged, high
performance bearings and TENV construction with IP65 sealing.
Normally closed thermal switch provides over temperature protection.
Various electrical windings are available as standard to suit both low (120 VAC) and high (230 VAC) voltage drives in order to provide optimum speed and torque characteristics.
Worldwide standard mounting configurations (i.e. English, Metric, and NEMA).
Encoder with commutation tracks, brushless resolvers, or Hall sensors are the standard
feedback devices offered.
Shaft keyway.
Class H insulation.
UL Recognized Component for the US and Canada.
CE marked.
RoHS compliant.

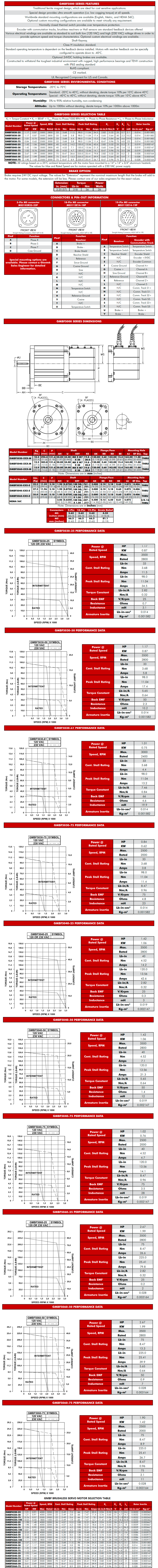

GMBF 5000Series Specification & Selection Table
