GLENTEK : LINEAR BRUSH SERVO DRIVE (MULTI-AXIS) SMA5005-X-XXX-XA-X

Glentek Linear Brush Servo Drive SMA5005-X-XXX-XA-X

Alternate View

Request for quantity, price, delivery and model information

Linear Brush Servo Drives Provides high bandwidth, low noise, and zero crossover distortion, Output current is 5 amps continuous, 15 amps peak. Operating voltages range from either 24 to 75 VDC.

Availability: Lead time 10 - 12 weeks
Order #: SMA5005-X-XXX-XA-X

Motor Type*:
Reset*:
Inhibit, +/- Limits Configuration*:
Signal Input, Mode, Pull Up Voltage*:
Mounting Configuration*:
Number of Drives Installed*:

Description

Ordering Information

Specifications and Drawings

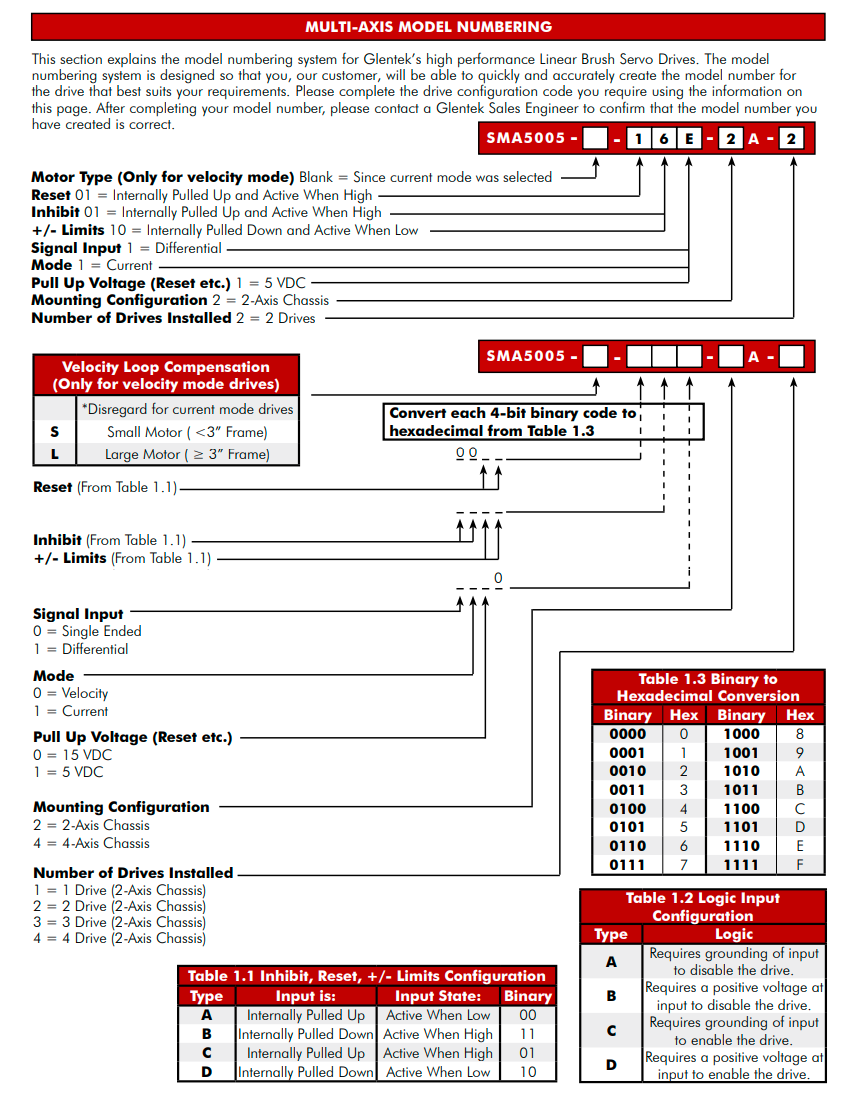

GLENTEK LINEAR BRUSH SERVO DRIVE (MULTI-AXIS) SMA5005-X-XXX-XA-X
The SMA5005 Linear Brush Servo Drive in the Multi-Axis package configuration operates from 17-53 VAC and can output up to 5 A of continuous current. All models can operate in current (torque) or velocity (RPM) mode and accept a +/-10 VDC analog input as a command reference. All models can close the velocity loop via feedback of a DC tachometer. These drives are best suited for low inertia applications that require high bandwidth, low noise, and zero crossover distortion and for motors or voice coils that require high curent loop bandwidths.

Glentek offers the latest in high performance Linear Brush Servo Drives for the control of both DC brush servo motors and voice coil motors. With extensive utilization of surface mount technology and special heat transfer techniques, Glentek’s Linear Brush Servo Drives offer one of the world’s most powerful products for a given form factor. All models can operate in current (torque) or velocity (RPM) mode and accept a +/-10 VDC analog input as a command reference. All models can close the velocity loop via feedback of a DC tachometer. Output current is 5 amps continuous, 15 amps peak. Operating voltages range from either 24 to 75 VDC for the module and 17 to 53 VAC for the multi-axis configuration. These drives are best suited for low inertia applications that require high bandwidth, low noise, and zero crossover distortion and for motors or voice coils that require high curent loop bandwidths.

This package consists of a servo drive with a DC bus power supply, external bias voltage power supply and cooling fans. Available in 2 and 4 axis packages.

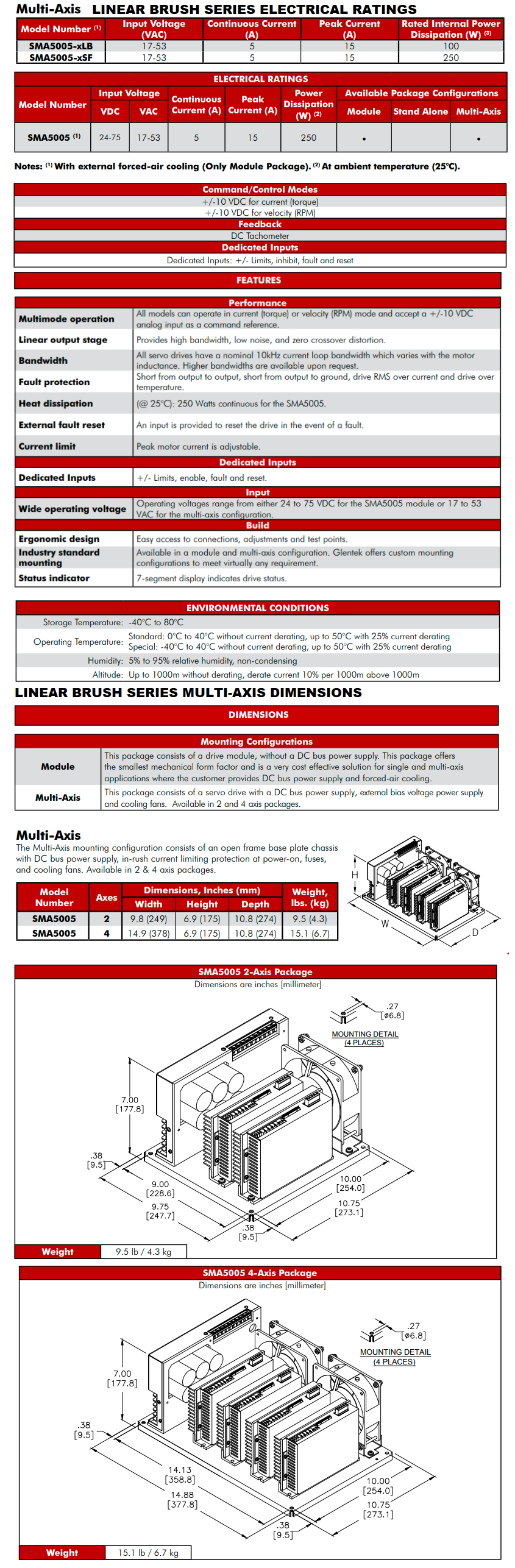

Specifications:

Series	Linear Brush
Package Configuration	Multi-Axis
Input Voltage	17-53 VAC
Continuous Current	5 A
Drive Compliance	CE, RoHS
Modes of Control	+/- 10 VDC for Current or Velocity
Motor Types	Brush Servo (Rotary), Voice Coil
Feedback Devices	Tachometer

Features:

Linear output stage	Provides high bandwidth, low noise, and zero crossover distortion.
Bandwidth	Standard servo drives have a nominal 10 kHz current loop bandwidth which varies with the motor inductance. High performance SMA5005-4 models (current mode only) have a nominal 15 kHz current loop bandwidth. Note: high performance models have fixed digital inputs
Multimode operation	All models can operate in current (torque) or velocity (RPM) mode and accept a +/-10 VDC,analog input as a command reference. Note: SMA5005-4 is current mode only.
Feedback	Models can close the velocity loop via a DC tachometer.
Wide operating voltage	Operating voltage ranges are 24-75 VDC for the SMA5005 Module configuration and 17-39 VAC (from transformer with center tap) for the SMA5015 Stand Alone configuration.
Internal heat dissipation	(@ 25Deg C): 100 Watts continuous for SMA5005-xLB, 250 Watts continuous for the SMA5005-xSF, and 300 Watts continuous for the SMA5015.
Ergonomic design	Easy access to connections, adjustments, and test points.
SMT Construction	Provides ultra compact size, cost competitive package, and high reliability.
Industry standard mounting	Available in a Module, Multi-Axis, and Stand Alone configuration. Optional custom mounting configurations are available to meet virtually any requirement.
Fault protection	Short from output to output, short from output to ground, drive RMS over current, drive under/over voltage (SMA5015 only), and drive over temperature.
Status indicator	7-segment LED display (SMA5015) or LEDs (5005) indicates drive status.
External fault reset	An input is provided to reset the drive in the event of a fault.
Manual fault reset	A push button reset is available on the SMA5015.
Current limit	Peak motor current is adjustable.
Compliance	All servo drives are CE marked in accordance with EN60204-1 (IEC204-1), and RoHS compliant
