GLENTEK : LINEAR BRUSH SERVO DRIVE (STAND ALONE) SMA5015-XXX-1A-1

Glentek Linear Brush Servo Drive SMA5015-XXX-1A-1

Alternate View

Request for quantity, price, delivery and model information

SMA5015 Linear Brush Servo Drive in the Stand Alone package configuration operates from 17-39 VAC from transformer with center tap and can output up to 10 A of continuous current.

Availability: Lead time 10 - 12 weeks
Order #: SMA5015-XXX-1A-1

Reset*:
Inhibit, +/- Limits Configuration*:

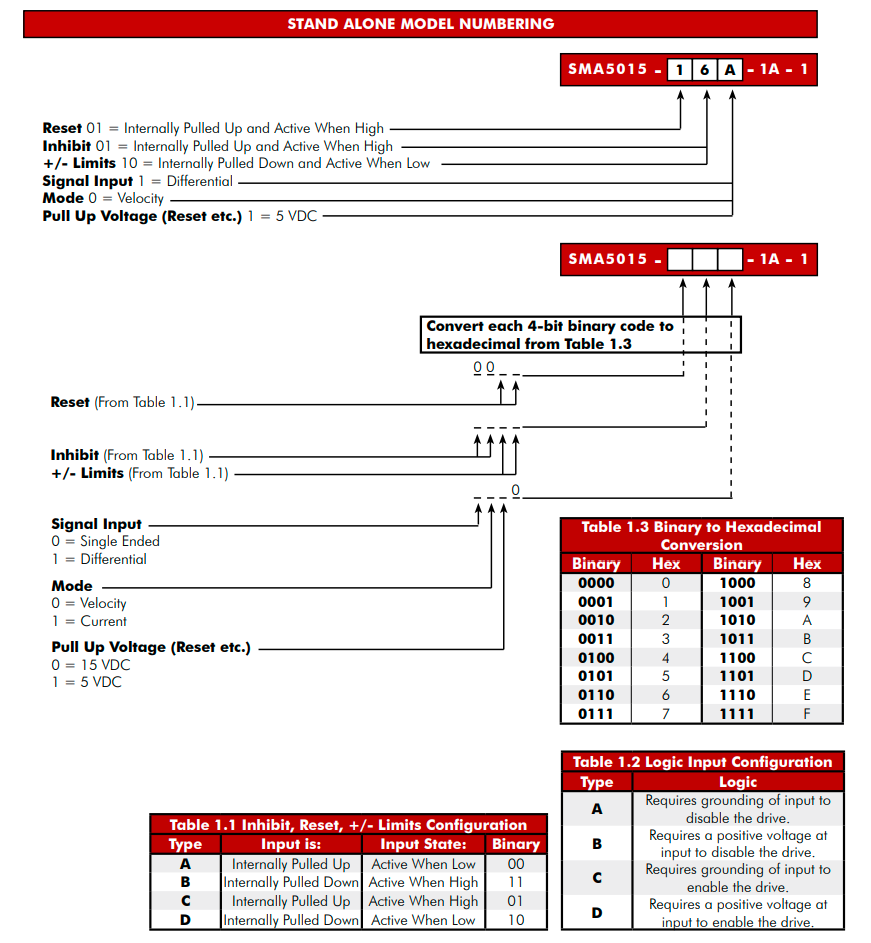

Signal Input, Mode, Pull Up Voltage*:

Description

Ordering Information

Specifications and Drawings

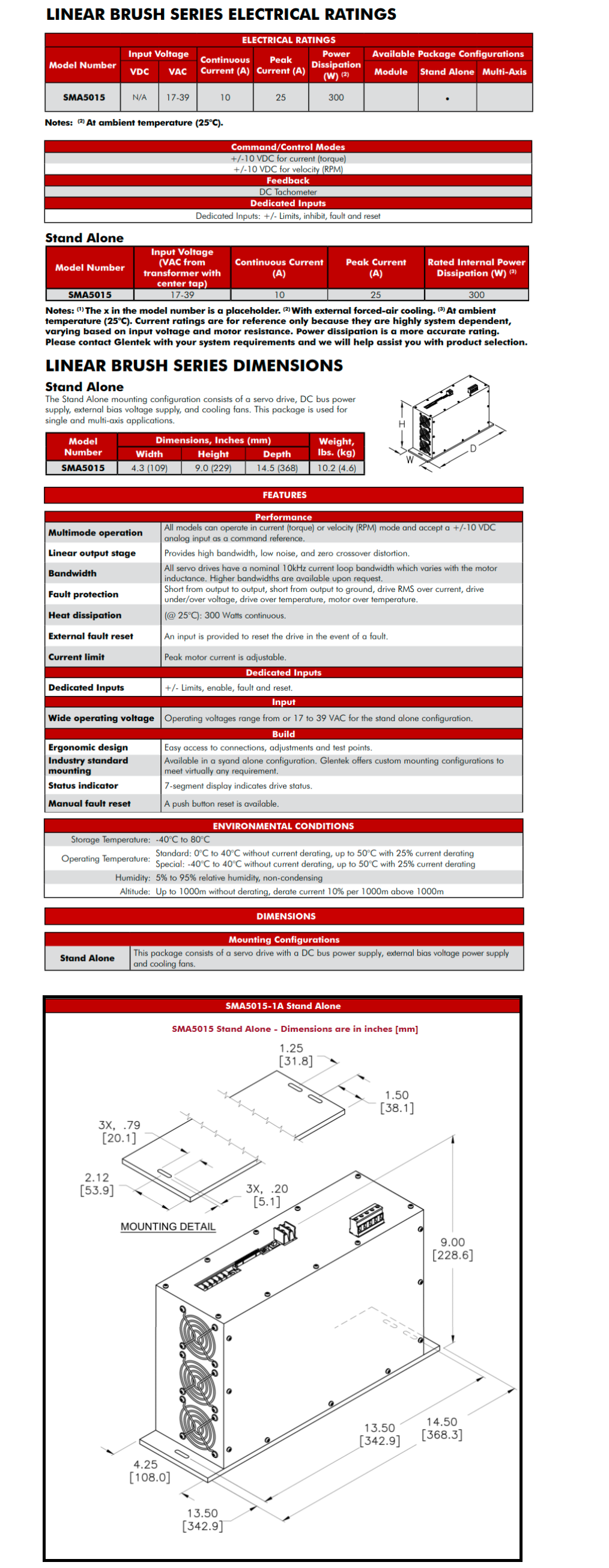

GLENTEK LINEAR BRUSH SERIES SERVO DRIVES (STAND ALONE) SMA5015-XXX-1A-1
The SMA5015 Linear Brush Servo Drive in the Stand Alone package configuration operates from 17-39 VAC from transformer with center tap and can output up to 10 A of continuous current.

Glentek offers the latest in high performance Linear Brush Servo Drives for the control of both DC brush servo motors and voice coil motors. With extensive utilization of surface mount technology and special heat transfer techniques, Glentek’s Linear Brush Servo Drives offer one of the world’s most powerful products for a given form factor. All models can operate in current (torque) or velocity (RPM) mode and accept a +/-10 VDC analog input as a command reference. All models can close the velocity loop via feedback of a DC tachometer. Output current is 5 amps continuous, 15 amps peak. Operating voltages range from either 24 to 75 VDC for the module and 17 to 53 VAC for the multi-axis configuration. These drives are best suited for low inertia applications that require high bandwidth, low noise, and zero crossover distortion and for motors or voice coils that require high curent loop bandwidths.

Specifications:

Series	Linear Brush
Package Configuration	Stand Alone
Input Voltage	17-39 VAC from transformer with center tap
Continuous Current	10 A
Drive Compliance	CE, RoHS
Modes of Control	+/- 10 VDC for Current or Velocity
Motor Types	Brush Servo (Rotary), Voice Coil
Feedback Devices	Tachometer

Features:

Linear output stage	Provides high bandwidth, low noise, and zero crossover distortion.
Bandwidth	All servo drives have a nominal 10 kHz current loop bandwidth which varies with the motor inductance. Higher bandwidths are available upon request
Multimode operation	All models can operate in current (torque) or velocity (RPM) mode and accept a +/-10 VDC,analog input as a command reference.
Feedback	Models can close the velocity loop via a DC tachometer.
Wide operating voltage	Operating voltage range from 17-39 VAC (from transformer with center tap) for the SMA5015 Stand Alone configuration.
Internal heat dissipation	300 Watts continuous for the SMA5015.
Ergonomic design	Easy access to connections, adjustments, and test points.
SMT Construction	Provides ultra compact size, cost competitive package, and high reliability.
Industry standard mounting	Available in a Module, Multi-Axis, and Stand Alone configuration. Optional custom mounting configurations are available to meet virtually any requirement.
Fault protection	Short from output to output, short from output to ground, drive RMS over current, drive under/over voltage (SMA5015 only), and drive over temperature.
Status indicator	7-segment LED display (SMA5015) or LEDs (5005) indicates drive status.
External fault reset	An input is provided to reset the drive in the event of a fault.
Manual fault reset	A push button reset is available on the SMA5015.
Current limit	Peak motor current is adjustable.
Compliance	All servo drives are CE marked in accordance with EN60204-1 (IEC204-1), and RoHS compliant
