GLENTEK : LINEAR BRUSHLESS MULTI-AXIS SERVO DRIVE SMA6520-50HS-X-X-2A-X
Glentek’s Linear Brushless Servo Drives provide the optimum solution for applications which require high current loop bandwidth, low radiated electrical noise and zero crossover distortion. This series is highly configurable and can operate in external sine commutation, trapezoidal commutation, or encoder-based sinusoidal commutation modes. These drives incorporate our latest generation ISO-BIAS current sense technology, which results in one of the lowest drift linear drives on the market today. These drives are constructed using surface mount technology and incorporate the latest in heat transfer technology, which make them one of the most powerful drives for a given form factor

Glentek’s SMA6520 series linear servo drives provide the optimum solution for applications which require high current loop bandwidth, low radiated electrical noise, and zero crossover distortion. These drives incorporate our latest generation ISOBIAS current sense technology, which results in one of the lowest drift linear drives on the market today. These drives are constructed using surface mount technology and incorporate the latest in heat transfer technology which make them one of the most powerful drives for a given form factor. Typical applications which are ideal for the SMA6520 series linear drives include low inductance/resistance brushless motors (linear or rotary) and high resolution air bearing linear brushless motor stages. The SMA6520 series is highly configurable and can operate in the following commutation modes:
Module:
Glentek’s SMA6520 series linear servo drives are offered in three module styles: the low power 50LB, the standard 50HS, and the high power 50HF which includes a fan. All modules accept any of the three available plug in boards (2-phase sinusoidal current mode, trapezoidal, or encoder-based commutation).

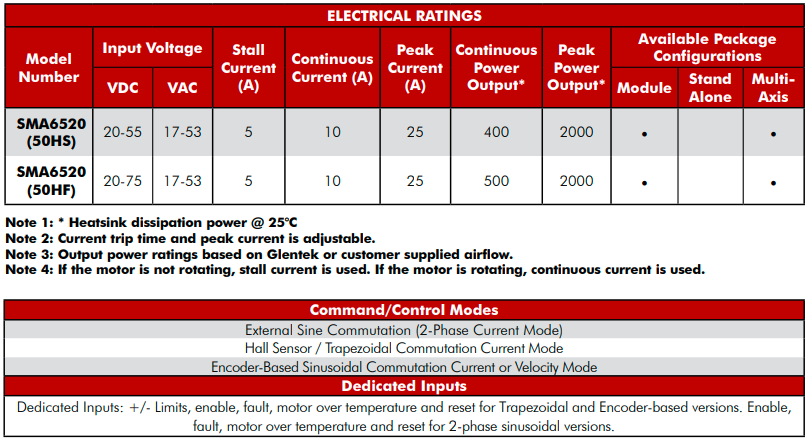

The SMA6520-50HS Linear Brushless Servo Drive in the Module package configuration operates from +/-20 to +/-55 Bipolar VDC and can output up to 10 A of continuous current. Linear Brushless Servo Drives provide the optimum solution for applications which require high current loop bandwidth, low radiated electrical noise and zero crossover distortion. This series is highly configurable and can operate in external sine commutation, trapezoidal commutation, or encoder-based sinusoidal commutation modes.
The SMA6520-50HF Linear Brushless Servo Drive in the Module package configuration operates from +/-25 to +/- 75 Bipolar VDC and can output up to 10 A of continuous current. Linear Brushless Servo Drives provide the optimum solution for applications which require high current loop bandwidth, low radiated electrical noise and zero crossover distortion. This series is highly configurable and can operate in external sine commutation, trapezoidal commutation, or encoder-based sinusoidal commutation modes.

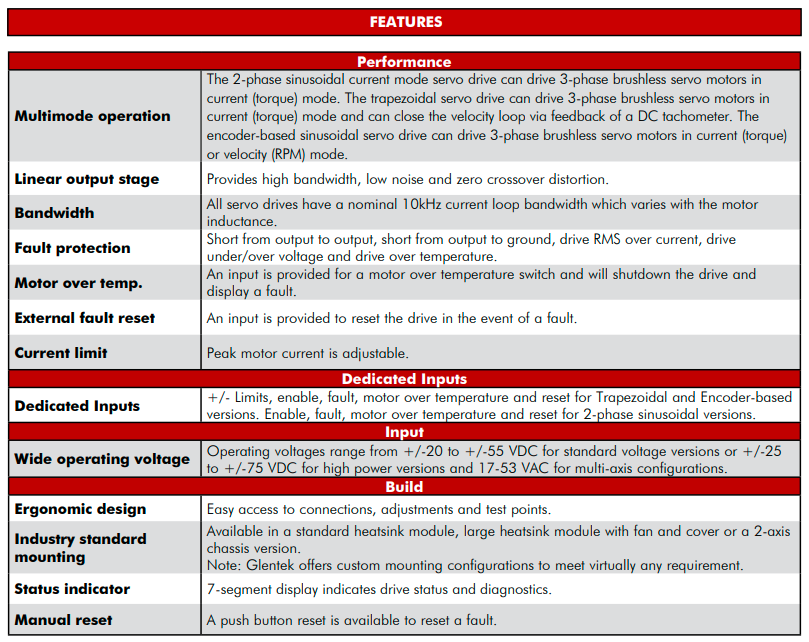

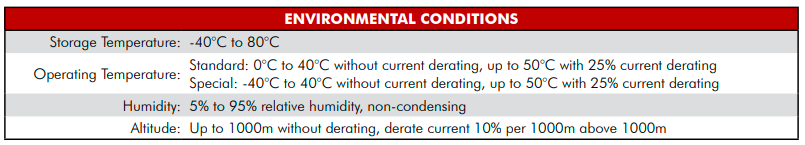

Specifications:

Overview:
